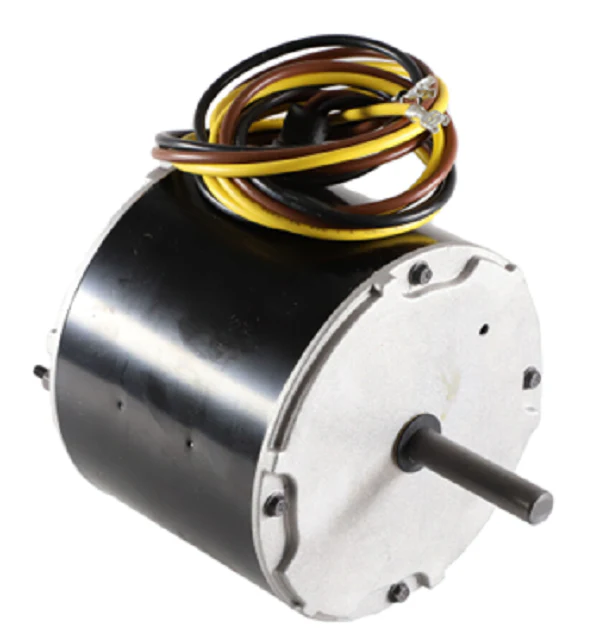

Carrier HC33GQ239 Motor
The Carrier HC33GQ239 is a factory-authorized condenser fan motor designed for high-performance heat dissipation in residential and light commercial outdoor units. Operating at 208-230V and 825 RPM, this 1/10 HP single-phase motor provides the precise torque and static pressure management required for modern HVAC systems. This HVAC replacement motor is the direct replacement for HC33GE238, ensuring a seamless drop-in fit for technicians servicing Carrier, Bryant, and Payne equipment.
Engineered with a 1/2" diameter shaft and Clockwise (CW) rotation, the unit features an Open Drip Proof (ODP) enclosure and Class B insulation for continuous duty cycles in demanding environments. This OEM motor is thermally protected to prevent winding failure under high ambient temperatures. For optimal performance and to prevent premature compressor stress, matching this motor with a new 370V/440V run capacitor is recommended during installation.
Key Benefits
- OEM Compatibility: Acts as the verified HC33GE238 replacement to maintain original factory airflow specifications.
- Enhanced Thermal Protection: Internal overload protection prevents overheating during peak summer loads.
- Efficient Heat Exchange: Steady 825 RPM operation ensures consistent condenser coil cooling, reducing system head pressure.
- Robust Construction: Designed for continuous air over (CAO) duty cycles to extend the service life of the outdoor unit.
Common Questions
What is the correct rotation for this motor?
The HC33GQ239 features a CW (Clockwise) lead-end rotation, specifically calibrated for standard Carrier condenser fan blade pitches.
Can I use this to replace the HC33GE238?
Yes, this is the factory-authorized supersede for the HC33GE238, matching all electrical and mechanical footprints.
Does this motor require a specific capacitor?
While the 1/10 HP rating is standard, you must verify the microfarad (MFD) requirement on the existing motor nameplate or service manual; replacing the run capacitor is best practice for all motor swaps.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
