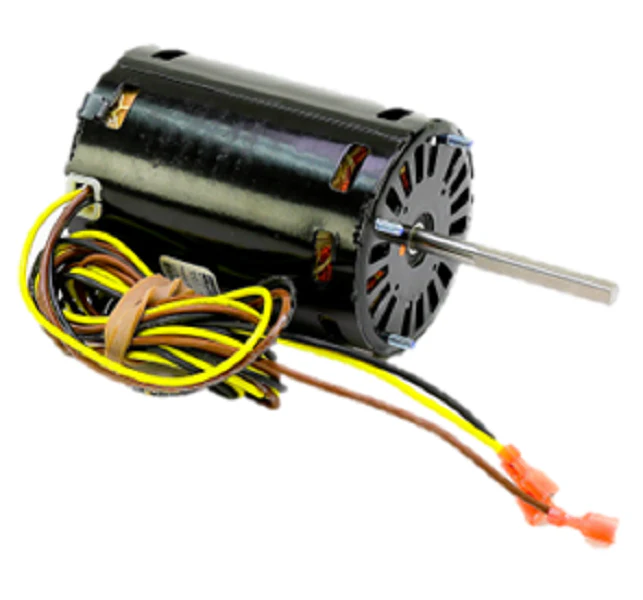

Carrier HC30GR460 Inducer Motor
The Carrier HC30GR460 Inducer Motor is a high-performance OEM replacement part engineered for critical combustion venting in residential and commercial HVAC furnace systems. This Fasco dual-speed motor (Model 71626684) operates across 400/460V single-phase power, providing the reliable high-torque output necessary for proper draft induction. With a versatile operating range of 2875/3450 RPM, it ensures optimal airflow and safe flue gas exhaust, maintaining system efficiency during high-demand cycles. Designed with ball-bearing construction and Class B insulation, this motor is built for the high-heat, continuous-duty environments typical of Carrier, Bryant, and Payne equipment. The unit features a clockwise rotation (CWLE) and a 5/16-inch double side flat shaft for secure blower wheel attachment. For professional installers, this thermally protected motor offers a direct-fit solution for 48HCD and 48KCD series units, requiring a 4 MFD @ 370V capacitor for correct field commissioning.
Key Benefits:- Dual-Speed Compatibility: Rated for 2875 and 3450 RPM to match exact system pressure switch requirements.
- Industrial-Grade Build: Features ball bearings and thermal protection to extend service life in air-over cooling applications.
- High-Voltage Integration: Specifically designed for 400/460V 50/60Hz configurations found in heavy-duty air handlers and RTUs.
- Standardized Mounting: Utilizes mounting studs and a compact frame for efficient installation in tight blower compartments.
- What are the primary Carrier HC30GR460 specifications for wiring? This is a single-phase motor pulling 0.20 to 0.26 Amps, requiring a 4 MFD capacitor if not reusing the existing one.
- Which equipment does this draft inducer motor fit? It is a direct replacement for various Carrier and Bryant 48 series packaged units; always verify the technical data sheet cross-reference before installation.
- Does this motor include the fan blade or housing? No, this is an OEM inducer motor only. The existing housing and wheel must be inspected for balance before reattaching to the 5/16" shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Carrier HC30GR460 Inducer Motor
The Carrier HC30GR460 Inducer Motor is a high-performance OEM replacement part engineered for critical combustion venting in residential and commercial HVAC furnace systems. This Fasco dual-speed motor (Model 71626684) operates across 400/460V single-phase power, providing the reliable high-torque output necessary for proper draft induction. With a versatile operating range of 2875/3450 RPM, it ensures optimal airflow and safe flue gas exhaust, maintaining system efficiency during high-demand cycles. Designed with ball-bearing construction and Class B insulation, this motor is built for the high-heat, continuous-duty environments typical of Carrier, Bryant, and Payne equipment. The unit features a clockwise rotation (CWLE) and a 5/16-inch double side flat shaft for secure blower wheel attachment. For professional installers, this thermally protected motor offers a direct-fit solution for 48HCD and 48KCD series units, requiring a 4 MFD @ 370V capacitor for correct field commissioning.
Key Benefits:- Dual-Speed Compatibility: Rated for 2875 and 3450 RPM to match exact system pressure switch requirements.
- Industrial-Grade Build: Features ball bearings and thermal protection to extend service life in air-over cooling applications.
- High-Voltage Integration: Specifically designed for 400/460V 50/60Hz configurations found in heavy-duty air handlers and RTUs.
- Standardized Mounting: Utilizes mounting studs and a compact frame for efficient installation in tight blower compartments.
- What are the primary Carrier HC30GR460 specifications for wiring? This is a single-phase motor pulling 0.20 to 0.26 Amps, requiring a 4 MFD capacitor if not reusing the existing one.
- Which equipment does this draft inducer motor fit? It is a direct replacement for various Carrier and Bryant 48 series packaged units; always verify the technical data sheet cross-reference before installation.
- Does this motor include the fan blade or housing? No, this is an OEM inducer motor only. The existing housing and wheel must be inspected for balance before reattaching to the 5/16" shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Carrier HC30GR460 Inducer Motor is a high-performance OEM replacement part engineered for critical combustion venting in residential and commercial HVAC furnace systems. This Fasco dual-speed motor (Model 71626684) operates across 400/460V single-phase power, providing the reliable high-torque output necessary for proper draft induction. With a versatile operating range of 2875/3450 RPM, it ensures optimal airflow and safe flue gas exhaust, maintaining system efficiency during high-demand cycles. Designed with ball-bearing construction and Class B insulation, this motor is built for the high-heat, continuous-duty environments typical of Carrier, Bryant, and Payne equipment. The unit features a clockwise rotation (CWLE) and a 5/16-inch double side flat shaft for secure blower wheel attachment. For professional installers, this thermally protected motor offers a direct-fit solution for 48HCD and 48KCD series units, requiring a 4 MFD @ 370V capacitor for correct field commissioning.
Key Benefits:- Dual-Speed Compatibility: Rated for 2875 and 3450 RPM to match exact system pressure switch requirements.
- Industrial-Grade Build: Features ball bearings and thermal protection to extend service life in air-over cooling applications.
- High-Voltage Integration: Specifically designed for 400/460V 50/60Hz configurations found in heavy-duty air handlers and RTUs.
- Standardized Mounting: Utilizes mounting studs and a compact frame for efficient installation in tight blower compartments.
- What are the primary Carrier HC30GR460 specifications for wiring? This is a single-phase motor pulling 0.20 to 0.26 Amps, requiring a 4 MFD capacitor if not reusing the existing one.
- Which equipment does this draft inducer motor fit? It is a direct replacement for various Carrier and Bryant 48 series packaged units; always verify the technical data sheet cross-reference before installation.
- Does this motor include the fan blade or housing? No, this is an OEM inducer motor only. The existing housing and wheel must be inspected for balance before reattaching to the 5/16" shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
