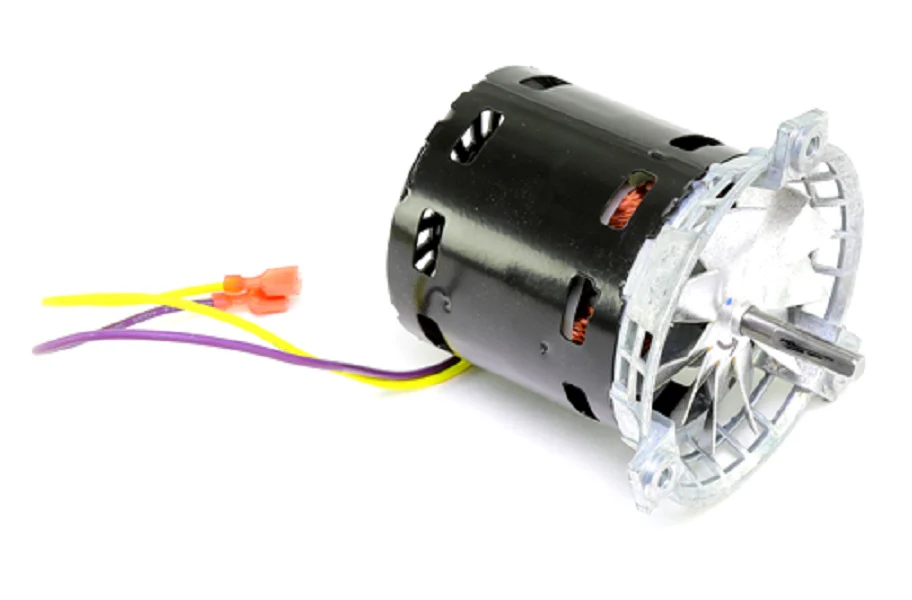

Carrier HC30CK239 Inducer Motor
The Carrier HC30CK239 Inducer Motor is a precision-engineered OEM replacement draft inducer specifically designed for high-efficiency Carrier gas furnace models and packaged units. This 1/25 HP furnace motor operates on a 208-230V single-phase power supply, delivering a consistent 3200 RPM to maintain the critical negative pressure required for safe combustion. Featuring a clockwise rotation (lead end) and robust ball-bearing construction, the HC30CK239 ensures the reliable expulsion of flue gases and effective pre-purge cycles in residential and light commercial HVAC systems. Unlike generic alternatives, this Carrier inducer assembly matches exact mounting specifications to eliminate vibration and ensure pressure switch verification during the ignition sequence. For HVAC contractors, this draft inducer motor serves as a direct drop-in for failed units in 48ESA and PY3GNA series equipment, restoring system efficiency and preventing safety lockouts caused by inadequate venting or bearing seizure in demanding thermal environments.
Key Benefits- Exact OEM Compatibility: Engineered as a direct Carrier replacement motor for seamless fitment in 48ESA and PY3GNA series gas-fired equipment.
- Efficient Venting Performance: High-speed 3200 RPM operation ensures reliable draft inducer pressure to clear the heat exchanger of combustion byproducts.
- Industrial-Grade Construction: Features permanently lubricated ball bearings and a 208-230V rating (0.65 Amps) for thermal stability and reduced mechanical friction.
- Critical Safety Compliance: Maintains the necessary negative pressure to satisfy the furnace pressure switch and prevent carbon monoxide backdrafting.
What are the signs of a failing Carrier HC30CK239 motor?
Technicians typically identify failure through audible grinding or screeching, which indicates bearing wear. Electrical symptoms include a motor that is "humming" but not spinning, often caused by seized internal components or a lack of proper 208-230V input. If the inducer motor fails to reach rated RPM, the system will likely trigger a pressure switch error code and enter lockout mode.
Can I use a 115V motor to replace the HC30CK239?
No. The HC30CK239 is specifically rated for 208-230V. Installing a 115V motor will cause immediate electrical failure and potential damage to the integrated furnace control board. Always verify the voltage on the data plate of the existing motor before installation.
Is the mounting gasket included with this motor?
While some kits may include a gasket, experienced technicians should inspect the original seal for degradation. Ensuring a gastight seal between the inducer assembly and the collector box is mandatory to prevent exhaust leaks and maintain proper static pressure for the switch.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Carrier HC30CK239 Inducer Motor
The Carrier HC30CK239 Inducer Motor is a precision-engineered OEM replacement draft inducer specifically designed for high-efficiency Carrier gas furnace models and packaged units. This 1/25 HP furnace motor operates on a 208-230V single-phase power supply, delivering a consistent 3200 RPM to maintain the critical negative pressure required for safe combustion. Featuring a clockwise rotation (lead end) and robust ball-bearing construction, the HC30CK239 ensures the reliable expulsion of flue gases and effective pre-purge cycles in residential and light commercial HVAC systems. Unlike generic alternatives, this Carrier inducer assembly matches exact mounting specifications to eliminate vibration and ensure pressure switch verification during the ignition sequence. For HVAC contractors, this draft inducer motor serves as a direct drop-in for failed units in 48ESA and PY3GNA series equipment, restoring system efficiency and preventing safety lockouts caused by inadequate venting or bearing seizure in demanding thermal environments.
Key Benefits- Exact OEM Compatibility: Engineered as a direct Carrier replacement motor for seamless fitment in 48ESA and PY3GNA series gas-fired equipment.
- Efficient Venting Performance: High-speed 3200 RPM operation ensures reliable draft inducer pressure to clear the heat exchanger of combustion byproducts.
- Industrial-Grade Construction: Features permanently lubricated ball bearings and a 208-230V rating (0.65 Amps) for thermal stability and reduced mechanical friction.
- Critical Safety Compliance: Maintains the necessary negative pressure to satisfy the furnace pressure switch and prevent carbon monoxide backdrafting.
What are the signs of a failing Carrier HC30CK239 motor?
Technicians typically identify failure through audible grinding or screeching, which indicates bearing wear. Electrical symptoms include a motor that is "humming" but not spinning, often caused by seized internal components or a lack of proper 208-230V input. If the inducer motor fails to reach rated RPM, the system will likely trigger a pressure switch error code and enter lockout mode.
Can I use a 115V motor to replace the HC30CK239?
No. The HC30CK239 is specifically rated for 208-230V. Installing a 115V motor will cause immediate electrical failure and potential damage to the integrated furnace control board. Always verify the voltage on the data plate of the existing motor before installation.
Is the mounting gasket included with this motor?
While some kits may include a gasket, experienced technicians should inspect the original seal for degradation. Ensuring a gastight seal between the inducer assembly and the collector box is mandatory to prevent exhaust leaks and maintain proper static pressure for the switch.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
