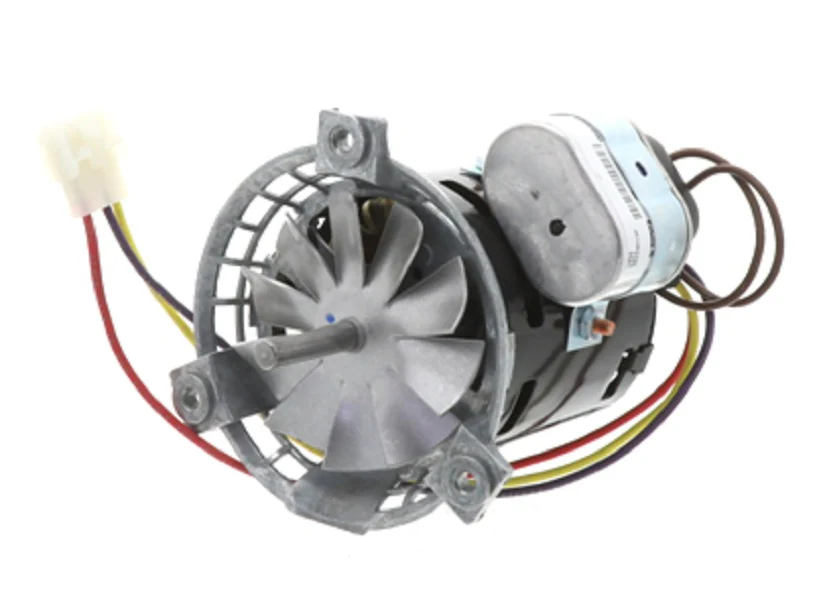

Carrier HC30CK233 Inducer Motor
The Carrier HC30CK233 is a high-performance induced draft motor designed for critical venting applications in Carrier, Bryant, and Payne HVAC equipment. This OEM replacement inducer motor operates on a 208-230V single-phase power supply at 60Hz, providing the necessary torque to clear combustion gases from the heat exchanger effectively. Featuring a robust 56 frame size and an open drip-proof (ODP) enclosure, this motor is engineered for durability in demanding mechanical environments. The unit includes a factory-installed 1 MFD capacitor rated at 370 VAC and utilizes sealed ball bearings to minimize frictional wear and operational noise. With a standardized 5/16-inch double-sided flat shaft, the HC30CK233 motor serves as a direct drop-in for several 48DU and 48XL series rooftop and package units. Utilizing genuine Carrier parts like this inducer ensures your HVAC ventilation system maintains proper static pressure and safety limit circuit continuity during the heating cycle.
Key Benefits:- Direct OEM Compatibility: Engineered as an exact electrical and mechanical match for Carrier HC30CK233 specifications, ensuring "plug-and-play" installation without field modifications.
- Enhanced Thermal Protection: Features internal thermal overload protection to prevent winding failure during high-static or restricted airflow conditions.
- Industrial Grade Construction: The Class B insulation and ODP housing provide superior heat dissipation and resistance to moisture ingress common in rooftop applications.
- Precision Performance: Rated at 1725 RPM (or varying duty cycles depending on system demand), providing consistent draft inducer pressure for optimal combustion efficiency.
What are the signs that my current inducer motor is failing?
Technicians typically look for high-pitched bearing squealing, a "humming" sound where the motor fails to start (often indicating a seized shaft or failed capacitor), or a limit switch error code on the furnace control board caused by insufficient pressure.
Does this motor include the cooling fan or centrifugal wheel?
The HC30CK233 is the motor and capacitor assembly. While it features a double-sided flat shaft for mounting, the existing blower wheel or fan blade must be inspected and transferred or replaced separately if damaged.
Can I use a 115V motor as a substitute for this model?
No. This is a 208-230V 1Ph motor. Installing a lower voltage motor will cause immediate winding burnout and may damage the integrated furnace control board.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
