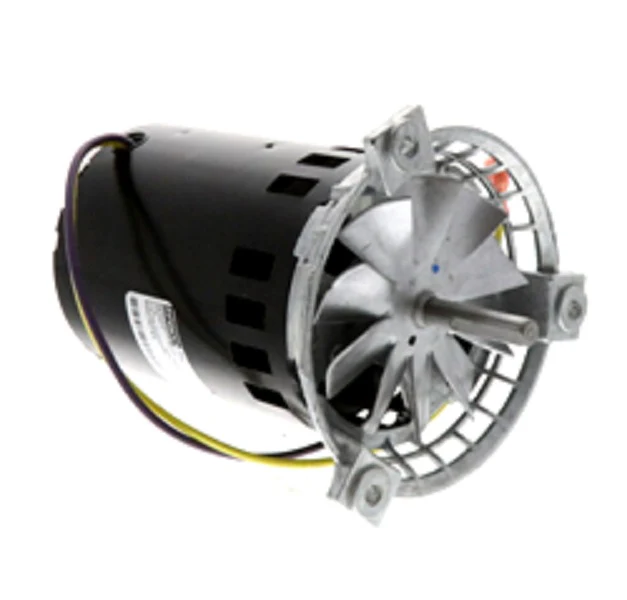

Carrier HC30CK229 Inducer Motor
As an HVAC professional, you know that a failed inducer is the most common cause of no-heat calls. The Carrier HC30CK229 Inducer Motor is a high-performance 230V 1-Phase 1/15 HP motor engineered specifically to restore proper draft and combustion airflow in residential and light commercial furnaces. This OEM component operates at 3300 RPM (nameplate 3200 RPM) with a 1.65 Amp draw, providing the precise negative pressure required to close the pressure switch and initiate the ignition sequence. It features a robust rolled steel frame and aluminum flange, tailored for the high-temp environments of a furnace collector box. This Carrier draft inducer motor is the direct replacement for 1177798 and fits numerous models from Carrier, Bryant, and Payne, ensuring a drop-in installation with standard CW rotation and rigid ear mounting. Whether you are dealing with a seized shaft or a high-resistance winding, this factory-authorized part ensures the unit maintains its original safety ratings and efficiency levels without the vibration issues often found in universal alternatives.
Key Benefits for Technicians- Direct OEM Match: Provides an exact fit for Carrier furnace replacement, eliminating the need for bracket modifications or wiring "re-engineering" in the field.
- Industrial Build Quality: Constructed with ball bearings and Class B insulation for improved heat dissipation and extended service life in high-cycle applications.
- Verified Compatibility: Replaces legacy part 1177798 and 66420-PACKARD, ensuring consistent performance with the existing HVAC control board.
- Optimal Draft Velocity: Rated at 3300 RPM to maintain the specific static pressure required for safe combustion gas venting and pressure switch activation.
Is this the correct motor for a "Code 32" error?
On many Carrier and Bryant units, a Code 32 indicates a pressure switch remains open. If your inducer motor is getting 230V but failing to spin, or spinning below the required RPM, the HC30CK229 is the technician-recommended solution to clear the fault.
Does this motor include the cooling fan or gasket?
This is the motor-only assembly. We recommend inspecting the inducer wheel for cracks and replacing the mounting gasket or applying high-temp silicone during installation to prevent flue gas leaks.
Can I use a 115V motor in place of this one?
No. This is a dedicated 230V single phase component. Installing a 115V motor on a 230V circuit will cause immediate winding failure and potential damage to the furnace control board.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
