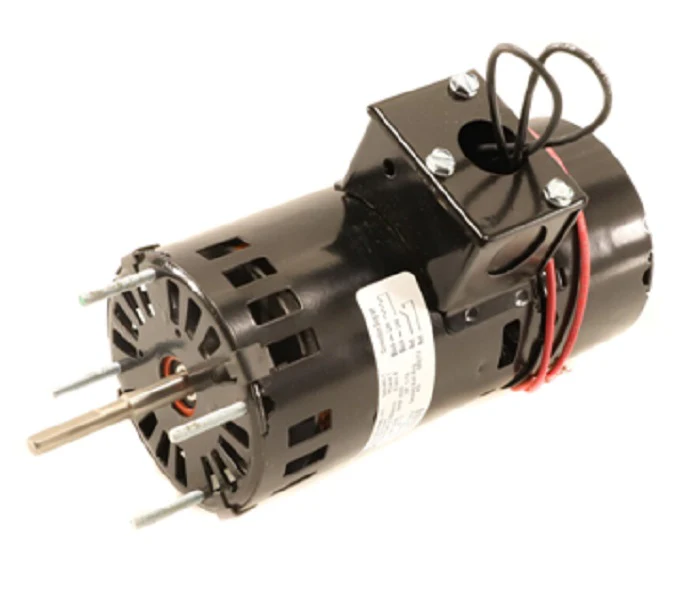

Carrier HC24AU700 Motor
The Carrier HC24AU700 is an OEM replacement condenser fan motor engineered for high-static HVAC applications. Operating at 230V and delivering 1/16 HP at a rated 3000 RPM, this single-speed motor is built for specific Carrier and Bryant residential and light commercial equipment. As a permanent split capacitor (PSC) motor, it provides reliable performance under high thermal stress and consistent torque for air-cooled condensers. This unit features a 3.3-inch frame diameter and is designed for a CW rotation (facing lead end). When installing the HC24AU700 motor, ensure you have the appropriate run capacitor ready, as field contractors often find that matching the exact microfarad rating is critical for maintaining efficiency and preventing premature winding failure in condensate pump motors and blower assemblies.
Key Benefits
- OEM Precision: Direct Carrier replacement motor ensures exact physical dimensions and mounting compatibility without bracket modifications.
- High-Speed Efficiency: Rated at 3000 RPM to maintain optimal airflow across the condenser coils in demanding environments.
- Durable Construction: Built with high-grade insulation to withstand the rigorous duty cycles typical of outdoor HVAC units.
- Standardized Specs: Uses 230V power supply, making it compatible with a wide range of standard residential split systems.
Common Questions
What is the frame size of the HC24AU700?
This motor utilizes a standard 3.3-inch frame, common in smaller condenser and pump applications.
Is the HC24AU700 a reversible motor?
No, this model is designed for a specific rotation. Verify your current fan blade pitch before installation to ensure the airflow direction matches the factory configuration.
Can I use this motor in a 208V system?
Yes, the Carrier HC24AU700 is rated for 208/230V operation, though amperage draw should be verified during commissioning.
Notes
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
