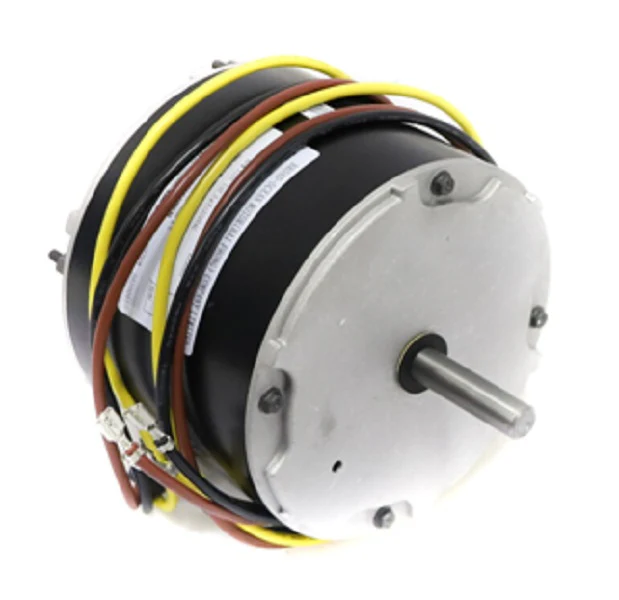

Carrier HB39GQ231 Motor
The Carrier HB39GQ231 Motor is a high-performance direct drive condenser fan motor engineered for reliability in demanding HVACR applications. Operating at 1100 RPM with a 1/4 HP output, this permanent split capacitor (PSC) motor is designed for 208-230V, single-phase systems. It serves as a precise OEM replacement motor for various Carrier, Bryant, and Payne condensing units, ensuring the specific torque profile and aerodynamic efficiency required for optimal heat transfer. Built with a totally enclosed air over (TEAO) enclosure, it protects internal windings from environmental debris and moisture, a critical factor for extending the service life of outdoor fan motors. When performing a condenser motor replacement, this unit offers the correct 48-frame mounting configuration and rotation to maintain original factory specifications and system static pressure balance.
Key Benefits
- Optimized Performance: The 1100 RPM speed rating ensures correct CFM across the coil, preventing high-head pressure issues.
- Industrial Build Quality: Features high-grade ball bearings and thermal overload protection for continuous duty in extreme ambient temperatures.
- Streamlined Installation: Direct-fit 1/2-inch shaft diameter allows for quick integration with existing fan blades without modification.
- Electrical Efficiency: Optimized winding design reduces amperage draw, contributing to overall system SEER maintenance.
Common Questions
What capacitor is required for the HB39GQ231?
This motor typically requires a 5 MFD / 370V run capacitor; always verify the rating on the new motor nameplate during installation.
Can this motor replace a 1075 RPM motor?
Yes, the 1100 RPM rating is the standard nominal speed for this frame size and is compatible with systems calling for 1075-1100 RPM motors.
Is this motor reversible?
The HB39GQ231 is factory-set for specific rotation (usually CCWLE), so verify the lead end rotation of your existing unit before mounting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
