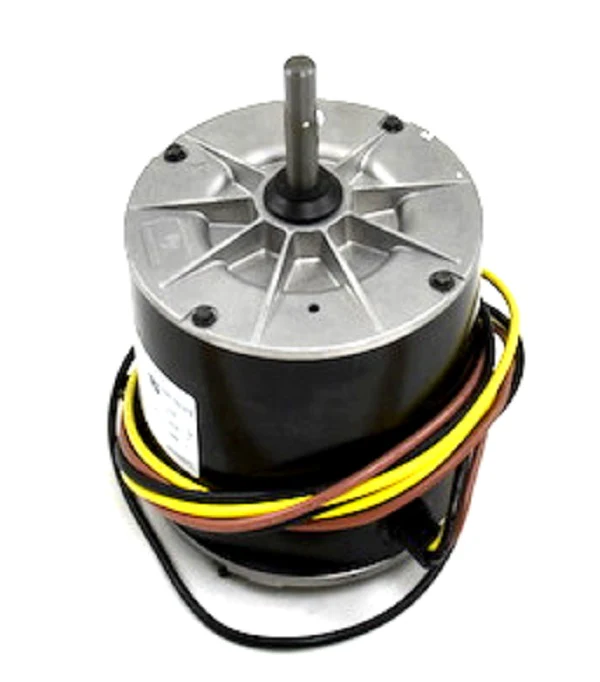

Carrier HB37GQ240 Motor
The Carrier HB37GQ240 is a high-performance OEM condenser fan motor designed specifically for Carrier and Payne outdoor units, including popular models like 48ES and PY4G. This single-phase PSC motor operates efficiently at 208-230V, delivering a dual-rated output of 1/5 HP and 1/6 HP. Running at a precise 810 RPM, it is engineered for low-speed, high-torque applications that demand consistent vertical or horizontal condenser airflow. The motor features thermal protection to prevent winding burnout during high-ambient operations and utilizes a permanent split capacitor design for optimized electrical efficiency. With a CW LE rotation and a standard through-bolt mount, this motor serves as a direct drop-in replacement, ensuring the physical dimensions and electrical specs match original factory requirements. For technicians, verifying the run capacitor (typically 5µF/370V) during installation is standard practice to maintain motor longevity and prevent premature failure.
Key Benefits for Technicians- Precise Load Matching: Dual-rated at 1/5 HP and 1/6 HP to ensure exact performance parity with original Carrier equipment.
- Enhanced Durability: Integrated internal thermal overload protection shields the motor from overheating during extreme duty cycles.
- Optimized Cooling: The 810 RPM speed is calibrated for specific condenser coil heat rejection requirements to maintain system subcooling.
- Reliable PSC Design: Permanent split capacitor architecture provides high starting torque and better energy efficiency than shaded-pole alternatives.
What is the correct rotation for the HB37GQ240?
This motor is Clockwise Lead End (CW LE). Always verify the fan blade pitch before installation to ensure the air is being pulled through the coil and discharged correctly.
Does this motor require a specific capacitor?
Yes, as a PSC motor, it requires a run capacitor (often 5 MFD). Using a weak or incorrect capacitor will cause the motor to run hot, pull high amps, or fail to start under load.
Can I use this motor to replace a 1075 RPM motor?
No. Matching the 810 RPM is critical. Using a motor with a different RPM will alter the static pressure and refrigerant pressures, potentially damaging the compressor or reducing system efficiency.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $383.81
-65%$383.81
$134.33Carrier HB37GQ240 Motor
The Carrier HB37GQ240 is a high-performance OEM condenser fan motor designed specifically for Carrier and Payne outdoor units, including popular models like 48ES and PY4G. This single-phase PSC motor operates efficiently at 208-230V, delivering a dual-rated output of 1/5 HP and 1/6 HP. Running at a precise 810 RPM, it is engineered for low-speed, high-torque applications that demand consistent vertical or horizontal condenser airflow. The motor features thermal protection to prevent winding burnout during high-ambient operations and utilizes a permanent split capacitor design for optimized electrical efficiency. With a CW LE rotation and a standard through-bolt mount, this motor serves as a direct drop-in replacement, ensuring the physical dimensions and electrical specs match original factory requirements. For technicians, verifying the run capacitor (typically 5µF/370V) during installation is standard practice to maintain motor longevity and prevent premature failure.
Key Benefits for Technicians- Precise Load Matching: Dual-rated at 1/5 HP and 1/6 HP to ensure exact performance parity with original Carrier equipment.
- Enhanced Durability: Integrated internal thermal overload protection shields the motor from overheating during extreme duty cycles.
- Optimized Cooling: The 810 RPM speed is calibrated for specific condenser coil heat rejection requirements to maintain system subcooling.
- Reliable PSC Design: Permanent split capacitor architecture provides high starting torque and better energy efficiency than shaded-pole alternatives.
What is the correct rotation for the HB37GQ240?
This motor is Clockwise Lead End (CW LE). Always verify the fan blade pitch before installation to ensure the air is being pulled through the coil and discharged correctly.
Does this motor require a specific capacitor?
Yes, as a PSC motor, it requires a run capacitor (often 5 MFD). Using a weak or incorrect capacitor will cause the motor to run hot, pull high amps, or fail to start under load.
Can I use this motor to replace a 1075 RPM motor?
No. Matching the 810 RPM is critical. Using a motor with a different RPM will alter the static pressure and refrigerant pressures, potentially damaging the compressor or reducing system efficiency.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
