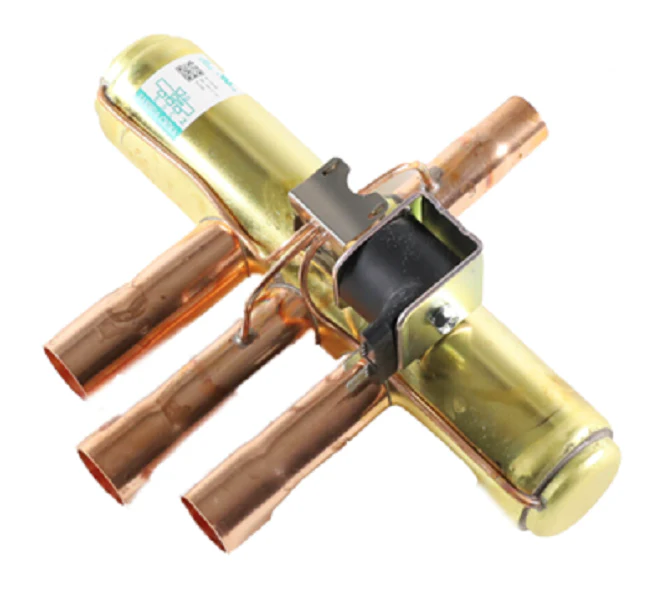

Carrier EF17BZ281 Reversing Valve
The Carrier EF17BZ281 Reversing Valve is a critical OEM component designed for high-performance heat pump systems. Engineered for refrigerant flow control, this 4-way valve features 5/8" x 7/8" ODF sweat connections and operates on a standard 24V solenoid circuit. As the designated direct replacement for EF17BG285, it facilitates seamless HVAC system repair without the need for extensive piping modifications. This Carrier reversing valve utilizes a precision-machined internal slide, often referred to as a "canoe," which shifts based on pressure differential to toggle the system between heating and cooling cycles. Field technicians typically rely on this model for its OEM compatibility and reliable switching performance, ensuring the reversing valve solenoid can effectively manage the transition from the condenser to the evaporator coils. Whether you are addressing a stuck reversing valve or performing a full system overhaul, this component provides the high-tolerance fit necessary to prevent internal bypass and maintain optimal compressor efficiency.
Key Benefits- Direct OEM Replacement: Engineered specifically to replace discontinued model EF17BG285 for exact fit and performance.
- Precision Switching: Optimized for 24V HVAC controls, ensuring reliable mode transitions even under high pressure.
- High-Tolerance Connections: Standard 5/8" x 7/8" ODF (Outside Diameter Female) sweat ports ensure a leak-free seal during brazing.
- Broad Compatibility: Suitable for a wide range of Carrier, Bryant, and Payne heat pump maintenance applications.
- Reduced Internal Bypass: Robust construction minimizes refrigerant leakage between the suction and discharge lines, protecting compressor health.
How do I troubleshoot a stuck Carrier reversing valve?
Technicians should first verify that the 24V solenoid coil is receiving the proper voltage signal from the defrost board. If the coil is energized but the valve fails to shift, check the pressure differential; most valves require a minimum difference of 30-70 PSI to move the internal slide. In some cases, a gentle tap on the valve body with a soft-faced tool can free a mechanically bound slide.
What are the symptoms of a leaking reversing valve?
The most common indicator of internal leakage is a low temperature differential (typically less than 3°F) across the suction lines or an unusually high suction pressure combined with low head pressure, which can mimic a failing compressor. Testing the temperature of the lines at least 5 inches from the valve body is recommended for an accurate diagnosis.
Can I use the EF17BZ281 in non-Carrier brand heat pumps?
While technically compatible with any system requiring its specific 5/8" x 7/8" ODF dimensions and 24V operation, it is always best practice to rely on OEM HVAC parts to ensure the internal flow rates and pressure ratings align with the original design specifications of the unit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $198.06
-65%$198.06
$69.32Carrier EF17BZ281 Reversing Valve
The Carrier EF17BZ281 Reversing Valve is a critical OEM component designed for high-performance heat pump systems. Engineered for refrigerant flow control, this 4-way valve features 5/8" x 7/8" ODF sweat connections and operates on a standard 24V solenoid circuit. As the designated direct replacement for EF17BG285, it facilitates seamless HVAC system repair without the need for extensive piping modifications. This Carrier reversing valve utilizes a precision-machined internal slide, often referred to as a "canoe," which shifts based on pressure differential to toggle the system between heating and cooling cycles. Field technicians typically rely on this model for its OEM compatibility and reliable switching performance, ensuring the reversing valve solenoid can effectively manage the transition from the condenser to the evaporator coils. Whether you are addressing a stuck reversing valve or performing a full system overhaul, this component provides the high-tolerance fit necessary to prevent internal bypass and maintain optimal compressor efficiency.
Key Benefits- Direct OEM Replacement: Engineered specifically to replace discontinued model EF17BG285 for exact fit and performance.
- Precision Switching: Optimized for 24V HVAC controls, ensuring reliable mode transitions even under high pressure.
- High-Tolerance Connections: Standard 5/8" x 7/8" ODF (Outside Diameter Female) sweat ports ensure a leak-free seal during brazing.
- Broad Compatibility: Suitable for a wide range of Carrier, Bryant, and Payne heat pump maintenance applications.
- Reduced Internal Bypass: Robust construction minimizes refrigerant leakage between the suction and discharge lines, protecting compressor health.
How do I troubleshoot a stuck Carrier reversing valve?
Technicians should first verify that the 24V solenoid coil is receiving the proper voltage signal from the defrost board. If the coil is energized but the valve fails to shift, check the pressure differential; most valves require a minimum difference of 30-70 PSI to move the internal slide. In some cases, a gentle tap on the valve body with a soft-faced tool can free a mechanically bound slide.
What are the symptoms of a leaking reversing valve?
The most common indicator of internal leakage is a low temperature differential (typically less than 3°F) across the suction lines or an unusually high suction pressure combined with low head pressure, which can mimic a failing compressor. Testing the temperature of the lines at least 5 inches from the valve body is recommended for an accurate diagnosis.
Can I use the EF17BZ281 in non-Carrier brand heat pumps?
While technically compatible with any system requiring its specific 5/8" x 7/8" ODF dimensions and 24V operation, it is always best practice to rely on OEM HVAC parts to ensure the internal flow rates and pressure ratings align with the original design specifications of the unit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
