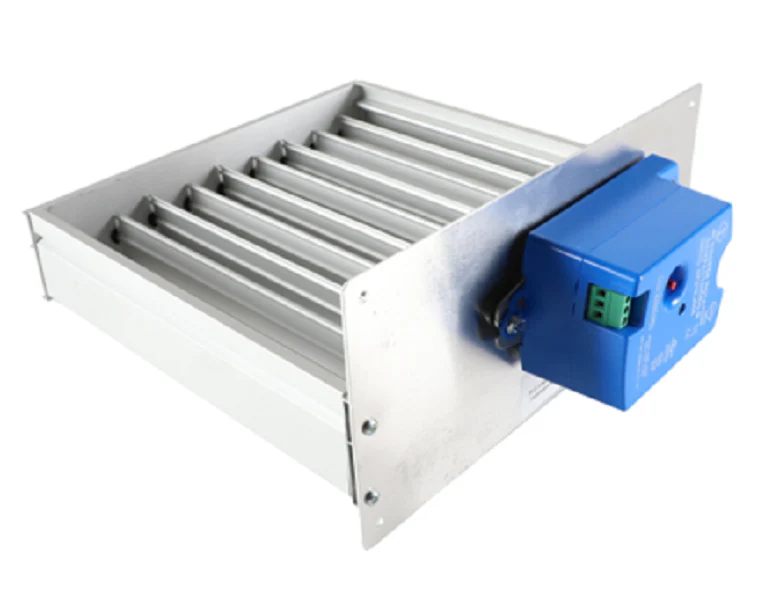

Carrier DAMPSLB10X10-B Damper
For contractors managing Carrier zoning systems, the Carrier DAMPSLB10X10-B 10x10 bottom slip-in damper provides a reliable, heavy-duty solution for regulating airflow in rectangular ductwork. Engineered for residential HVAC zoning and light commercial retrofits, this slip-in zone damper features a 24 VAC internal direct-drive actuator, delivering smooth, quiet operation without the need for additional linkage or complicated adjustments. The compact bottom mount actuator housing is designed to save space, making it ideal for tight plenum installations or limited clearance HVAC ductwork. A self-aligning plastic hub slips directly over the damper shaft, significantly reducing the potential for shaft binding or mechanical misalignment during the damper installation process.
Built for efficiency, this unit utilizes 45-degree actuators and blades, optimizing airflow control and minimizing air noise at high static pressures. The motorized assembly includes a spring-loaded disengagement button, allowing technicians to manually position the blade for testing and commissioning without powering the system. Wiring is simplified through recessed terminals in a protected plastic housing, requiring no cover removal for basic 3-wire (Open, Common, Closed) connections. This replacement HVAC damper is fully compatible with original equipment manufacturer specifications for standard Carrier, Bryant, and Day & Night zone control panels, ensuring seamless integration into existing residential climate control networks.
Key Benefits- Direct-Drive Actuator: Features a high-torque 24V motor for consistent 15-second drive times and quiet performance.
- Simple Retrofit: Slip-in design requires only a 3-inch cutout in the duct, allowing for fast field upgrades.
- Self-Aligning Hub: Prevents shaft binding by utilizing a floating hub design that compensates for slight duct imbalances.
- Moisture Protection: The actuator's plastic hub acts as a thermal barrier, protecting internal electronics from condensation in high-humidity supply air.
- Field Serviceable: Includes a mechanical position indicator and manual override button for rapid diagnostics.
Is this damper compatible with standard 24V zone controllers?
Yes, the Carrier DAMPSLB10X10-B utilizes a standard 3-wire connection (Common, Open, Close) and is compatible with most 24 VAC zoning panels, including the Carrier Infinity and Bryant Evolution systems.
Can this damper be installed in any orientation?
This specific model is a bottom mount damper, meaning the actuator is positioned on the bottom side of the 10x10 duct. For side-mount requirements, the DAMPSLS series should be utilized to ensure proper blade orientation and accessibility.
What is the maximum allowable static pressure for this unit?
As a part of a standard HVAC zone control setup, these dampers are rated to operate efficiently in systems with static pressures typically found in residential and light commercial forced-air applications, usually up to 1.0 in. w.c.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
