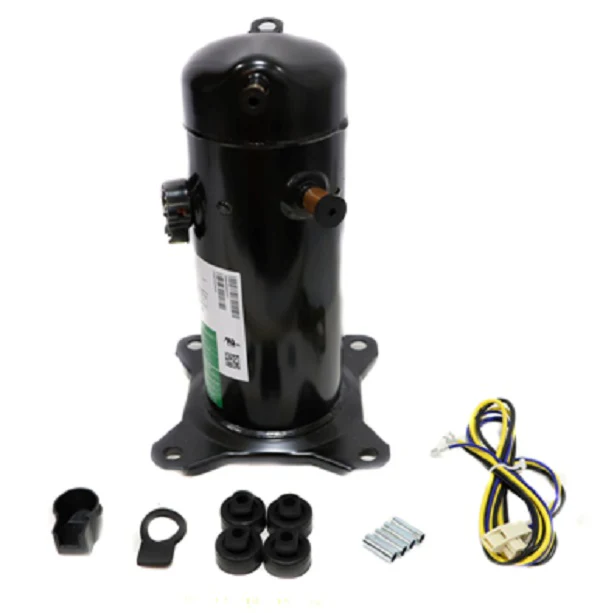

Carrier APG029KAB Compressor
The Carrier APG029KAB is a professional-grade 2.5ton scroll compressor engineered for high-efficiency residential and light commercial HVAC applications. This hermetic compressor is a direct OEM replacement for Carrier, Bryant, and Payne units, optimized for use with R-410A refrigerant. Operating at 208-230V 1ph and 60 Hz, the unit delivers a nominal 28,800 BTU/hr capacity. Technical specs include a Rated Load Amps (RLA) of 13.6 and Locked Rotor Amps (LRA) of 79, ensuring robust performance under high thermal loads. The motor is rated at 2 2/5 HP and comes pre-charged with 25 oz of Polyolester (POE) oil. For installation, the terminal configuration and 7.5" x 7.5" mounting pattern facilitate a direct drop-in fit. The suction line features a 3/4" OD fitting while the discharge is 1/2" OD, supporting standard braze connections. Internal motor protection and a 71 dBA sound rating ensure quiet, reliable operation in demanding environments.
Key Benefits:- Direct OEM Compatibility: Verified fit for Carrier family equipment ensures exact match for electrical and physical specifications.
- Advanced Scroll Geometry: Fewer moving parts compared to reciprocating models, resulting in higher volumetric efficiency and reduced vibration.
- Pre-Charged POE Oil: Shipped with 25 oz of Polyolester oil for immediate compatibility with R-410A systems.
- Integrated Protection: Internal line break motor protector safeguards the 2.5 ton compressor against thermal overload and overcurrent.
- Serviceability: Standardized 3/4" suction and 1/2" discharge fittings allow for efficient brazing and vacuum pull-down.
What is the correct refrigerant for the APG029KAB?
This model is specifically designed for R-410A refrigerant. It is not compatible with R-22 or other legacy refrigerants due to the POE oil and internal pressure ratings.
Can this replace a compressor with a different LRA rating?
Contractors should match the 79 LRA and 13.6 RLA specs closely. Minor variations are common in field replacements, but the voltage must remain 208-230V single phase.
Does this unit include the mounting hardware?
Typically, OEM replacement compressors include the rubber mounting grommets, but it is recommended to retain the existing mounting bolts from the chassis.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Carrier APG029KAB Compressor
The Carrier APG029KAB is a professional-grade 2.5ton scroll compressor engineered for high-efficiency residential and light commercial HVAC applications. This hermetic compressor is a direct OEM replacement for Carrier, Bryant, and Payne units, optimized for use with R-410A refrigerant. Operating at 208-230V 1ph and 60 Hz, the unit delivers a nominal 28,800 BTU/hr capacity. Technical specs include a Rated Load Amps (RLA) of 13.6 and Locked Rotor Amps (LRA) of 79, ensuring robust performance under high thermal loads. The motor is rated at 2 2/5 HP and comes pre-charged with 25 oz of Polyolester (POE) oil. For installation, the terminal configuration and 7.5" x 7.5" mounting pattern facilitate a direct drop-in fit. The suction line features a 3/4" OD fitting while the discharge is 1/2" OD, supporting standard braze connections. Internal motor protection and a 71 dBA sound rating ensure quiet, reliable operation in demanding environments.
Key Benefits:- Direct OEM Compatibility: Verified fit for Carrier family equipment ensures exact match for electrical and physical specifications.
- Advanced Scroll Geometry: Fewer moving parts compared to reciprocating models, resulting in higher volumetric efficiency and reduced vibration.
- Pre-Charged POE Oil: Shipped with 25 oz of Polyolester oil for immediate compatibility with R-410A systems.
- Integrated Protection: Internal line break motor protector safeguards the 2.5 ton compressor against thermal overload and overcurrent.
- Serviceability: Standardized 3/4" suction and 1/2" discharge fittings allow for efficient brazing and vacuum pull-down.
What is the correct refrigerant for the APG029KAB?
This model is specifically designed for R-410A refrigerant. It is not compatible with R-22 or other legacy refrigerants due to the POE oil and internal pressure ratings.
Can this replace a compressor with a different LRA rating?
Contractors should match the 79 LRA and 13.6 RLA specs closely. Minor variations are common in field replacements, but the voltage must remain 208-230V single phase.
Does this unit include the mounting hardware?
Typically, OEM replacement compressors include the rubber mounting grommets, but it is recommended to retain the existing mounting bolts from the chassis.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
