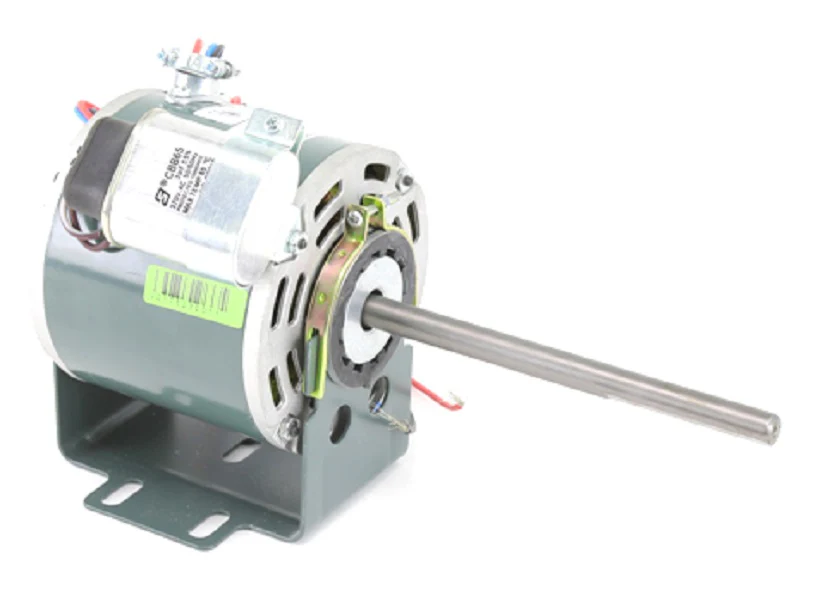

Carrier 705563-29 Motor
The Carrier 705563-29 Fan Motor is a precision-engineered 1/30HP HVAC replacement motor designed for high-performance air handling and ventilation applications. Running on a standard 115V single-phase power supply, this motor delivers a consistent 1600 RPM, ensuring optimal airflow and static pressure management in critical HVAC systems. As an OEM Carrier motor, the 705563-29 offers a drop-in fit for specific air handling units and fan assemblies, eliminating the need for field modifications and reducing labor time during service calls. This shps motor features 3-speed versatility and a robust 1/4" frame size, making it a staple for contractors maintaining residential and commercial climate control systems. Built for durability, it handles the continuous duty cycles required of modern fan motors while maintaining efficient electrical consumption. Verify your specific shaft rotation and mounting requirements against the 705563-29 technical specifications to ensure seamless integration during your next preventative maintenance or emergency repair.
Key Benefits
- OEM Compatibility: Precision-fit Carrier 705563-29 ensures direct replacement, maintaining original system performance and airflow ratings.
- Multi-Speed Versatility: Features a 3-speed motor design, allowing for tailored airflow adjustment to match specific system requirements.
- Reliable Operation: Rated for 1600 RPM at 115V, providing the necessary torque for consistent fan blade rotation in varied static environments.
- Simplified Installation: Standard 1/4" physical footprint and single-phase 115V electrical requirements streamline the swap-out process for field technicians.
Common Questions
Is this motor compatible with non-Carrier air handlers?
While designed as a direct Carrier OEM replacement part, this 1/30HP 115V motor can be used in alternative applications where the RPM, mounting, and voltage specs align. Always verify shaft diameter and rotation before installing in non-native equipment.
What is the frame size and RPM for the 705563-29?
This motor operates at a nameplate speed of 1600 RPM and typically fits 1/4" motor mounts. It is engineered specifically for 115V 1PH power configurations common in residential HVAC units.
Can I use a capacitor-start motor to replace this unit?
You should always match the motor type and wiring schematic of the original part. The Carrier 705563-29 is a specific fan motor configuration; using an incompatible motor type can lead to overheating or premature failure of the new unit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
