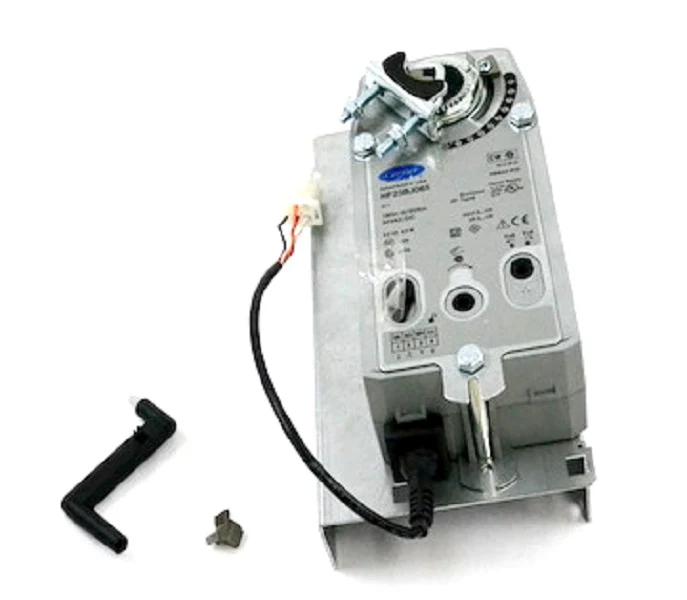

Carrier 50TG680032 Actuator
The Carrier 50TG680032 Actuator is a precision-engineered damper actuator designed for direct integration with specific Carrier packaged rooftop units and commercial air handling systems. This component provides critical modulating control for specialized air dampers, ensuring precise airflow regulation and optimal building pressure management. Operating as a critical link in the HVAC economizer or ventilation assembly, this direct-coupled actuator features rugged internal gearing and high-torque performance to handle consistent cycling in demanding environments. Technicians should verify that the OEM control signal—typically a 2-10VDC or 4-20mA input—matches the logic of the integrated controller to maintain precise positioning. Designed for seamless mechanical fitment, the 50TG680032 minimizes installation time and eliminates the need for field modifications, ensuring consistent airflow performance and system efficiency. Utilizing these high-grade HVAC replacement parts ensures that the external static pressure and ventilation rates remain within engineered specifications for long-term operational integrity.
Key Performance Benefits
- Direct-coupled design simplifies mechanical linkage and reduces points of failure.
- Engineered for high-durability damper regulation in commercial RTU applications.
- Precise feedback signals allow for real-time monitoring of damper position.
- Compatible with specific Carrier 50TG series units for exact OEM restoration.
- High-torque output ensures reliable operation even in high-velocity duct environments.
Common Questions
Is the 50TG680032 compatible with non-Carrier control systems?
While designed primarily for Carrier OEM equipment, it can interface with standard building automation systems provided the voltage and control signal requirements match the technical data sheet.
What is the primary cause of failure for these actuators?
Most failures result from seized damper blades or excessive friction in the linkage. Before installing a new 50TG680032, ensure the damper assembly moves freely throughout its entire range of motion.
Does this unit support spring-return functionality?
Technicians should refer to the specific wiring diagram for the 50TG application, as fail-safe positions are determined by the internal spring mechanism or control logic depending on the specific model variation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,892.33
-65%$1,892.33
$662.32Carrier 50TG680032 Actuator
