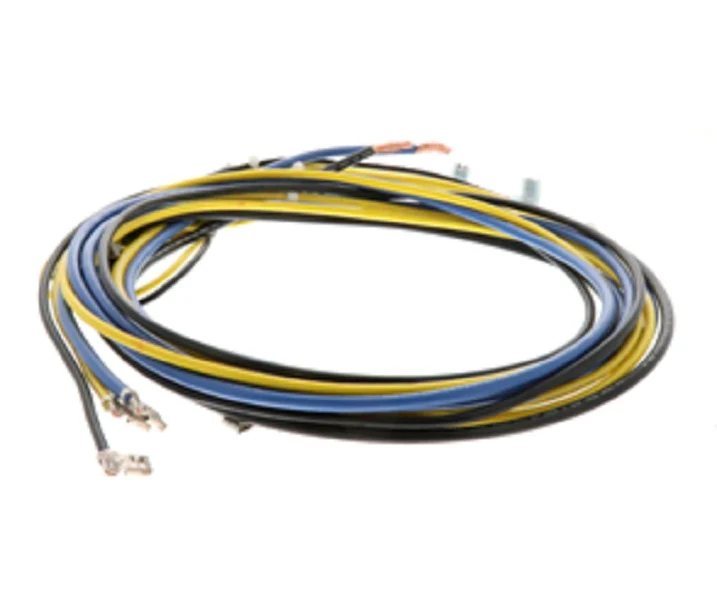

Carrier 50HJ440146 Harness Assembly
The Carrier 50HJ440146 Harness Assembly is a precision-engineered OEM replacement part designed for integration within Carrier 50HJ series rooftop units (RTU). This HVAC wiring harness ensures seamless electrical continuity between the control board, fan motors, and auxiliary components. As a critical piece of commercial HVAC equipment, it is manufactured to withstand the high-vibration environment of 5-ton to 25-ton packaged units, maintaining signal integrity and power distribution under extreme temperature fluctuations. For technicians performing HVAC system repairs, this assembly provides a direct-fit solution that minimizes field-modification time and eliminates the risk of high-resistance points often found in manual spliced repairs.
Selecting the correct Carrier 50HJ440146 is essential for maintaining the operational safety and electrical standards of the original equipment. This assembly is optimized for the WeatherMaster series, specifically handling the control logic and power routing for internal fan sequences and compressor cycling. Given the specific pin configurations and wire gauges utilized in this harness assembly, precise model matching is required to avoid board damage or intermittent faults. Professionals should verify the part number against the unit's rating plate before installation to ensure full electrical compatibility.
Key Benefits
- OEM Precision: Guaranteed plug-and-play compatibility with Carrier 50HJ series rooftop units, ensuring no deviation from factory wiring schematics.
- Vibration Resistance: Constructed with high-grade terminal connectors and protective sleeving to resist fatigue in high-RPM fan environments.
- Enhanced Conductivity: Features factory-crimped terminals that provide low-resistance connections, reducing the voltage drop across the harness.
- Reliable Maintenance: Simplifies troubleshooting by following standardized color-coding and routing established in Carrier service manuals.
Common Questions
Is the Carrier 50HJ440146 compatible with other RTU series?
This harness is specifically designed for the 50HJ architecture. While some 48 series units share similar footprints, you must verify the specific wiring diagram for your model to prevent pin-out mismatches.
What are the signs of a failing harness assembly?
Common indicators include intermittent fan operation, "ghost" fault codes on the diagnostic board, or visible thermal damage at the connector plugs due to loose terminal tension.
Does this harness include the mounting clips?
Most Carrier 50HJ440146 assemblies come with the primary securing clips attached, but it is recommended to have additional zip ties on hand for proper field routing away from heat-generating components.
Item is Non Cancelable / Non Returnable
