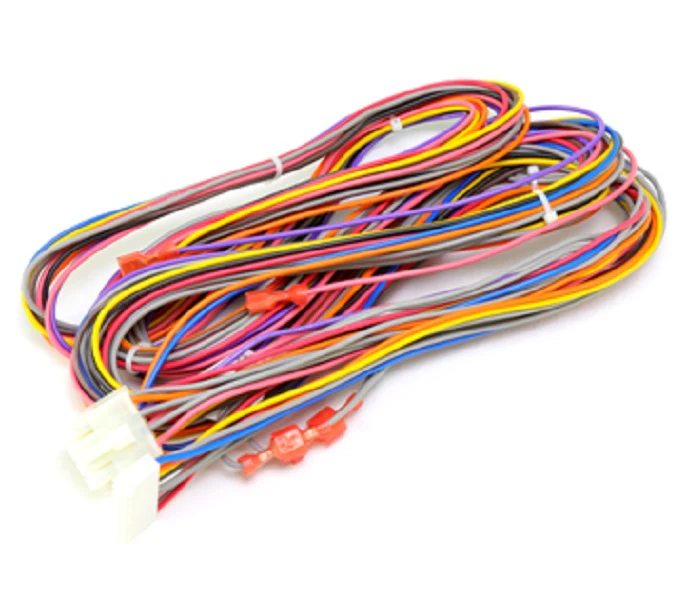

Carrier 48TMHSRSE-A00 Jumper Assembly
The Carrier 48TMHSRSE-A00 Economizer Jumper Assembly is a specialized HVAC wire harness designed to maintain electrical continuity within the control circuit of commercial rooftop units. As an OEM replacement part, this 48TMHSRSE-A00 jumper plug is critical for technicians when an economizer is not present or has been removed from the system. It bridges the PL6 connection to ensure the indoor fan and cooling stages receive the necessary signals from the integrated controller, preventing "open circuit" errors that can sideline a 48-series or 50-series package unit.
For service professionals, using this factory authorized part is preferred over field-fabricated jumpers to ensure HVAC system compatibility and high-performance signal integrity. The assembly is built to withstand the high-vibration environment of the blower cabinet and provides a secure, snap-in fit to the existing unit wiring. When diagnosing intermittent fan issues or cooling failures on Carrier HVAC equipment, verifying the presence and condition of the economizer jumper assembly is a standard troubleshooting step to restore proper sequence of operation.
Key Benefits- Ensures consistent HVAC electrical continuity by bridging the PL6 economizer plug.
- Eliminates control board communication errors when operating without an active economizer.
- Provides a direct-fit OEM harness for rapid restoration of unit cooling functions.
- Constructed with heavy-duty gauge wiring for localized heat resistance inside the cabinet.
- Matches proprietary Carrier technical specifications for reliable signal transmission.
When should the 48TMHSRSE-A00 be installed?
This jumper is required when a rooftop unit is shipped or operated without a factory-installed or field-installed economizer. It completes the circuit originally occupied by the economizer's main plug.
Will this work with other brands?
This is a brand-specific Carrier 48TMHSRSE-A00 component and is designed exclusively for compatible Carrier, Bryant, and Carlyle commercial rooftop units. Always verify the part number against the unit’s wiring diagram.
Can I bypass this with a manual wire nut?
While possible, it is not recommended for professional applications. Using the OEM jumper assembly ensures the correct pinout is maintained and prevents damage to the unit's low-voltage control transformer.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
