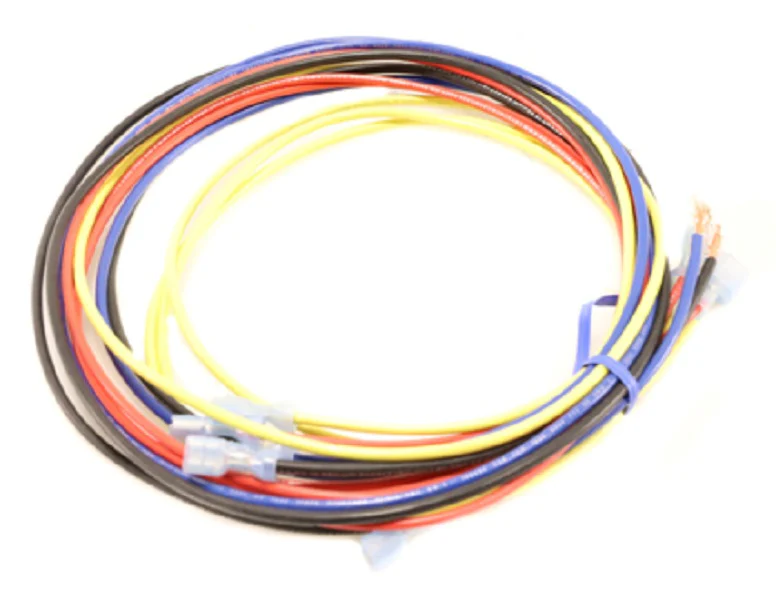

Carrier 48TM400923 Harness Assembly
The Carrier 48TM400923 Harness Assembly is a critical OEM replacement part designed for Indoor Fan Motor (IFM) connectivity in light commercial 48 and 50 series rooftop units. This factory-authorized wiring harness ensures secure electrical communication between the integrated furnace controller and the blower assembly. Built for long-term reliability in high-cycle HVAC environments, the 48TM400923 features high-temp insulation and precision-molded connectors that prevent resistance-related failures common in aftermarket alternatives. For technicians performing HVAC troubleshooting on 48HCD, 48TCD, or 50TCA models, this harness is essential for restoring proper fan motor operation and maintaining system efficiency. By utilizing professional-grade terminal pins and specific lead lengths for a clean fit within the blower cabinet, it eliminates the need for field-modifying universal wires. Ensure your Carrier 48TM400923 IFM harness is seated correctly to avoid vibration-induced wear or intermittent signaling issues in the control circuit.
Key Benefits- Factory-Authorized Fit: Designed specifically for 48/50 series RTUs, ensuring correct lead lengths and pin configurations for the Indoor Fan Motor.
- Enhanced Durability: Constructed with heavy-duty insulation to withstand heat and environmental stress within the cabinet.
- OEM Performance: Maintains original equipment manufacturer standards to prevent electrical noise and signal loss in the IFM circuit.
- Labor Efficiency: Plug-and-play design reduces diagnostic and installation time during repair calls.
Which models are compatible with this harness?
This harness is primarily compatible with Carrier, Bryant, and Payne 48 and 50 series rooftop units, including 48HCDA075A, 48HCDA076A, 48HCDD085A, and 50TCA086A models.
Does this harness include the connectors?
Yes, the 48TM400923 comes with pre-installed, molded connectors for a direct match to the factory motor and control board terminals.
Why should I use an OEM harness instead of field-wiring?
OEM harnesses use calibrated wire gauges and connector types that match the exact ampacity and signal requirements of the unit, preventing overheating and control board damage.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $89.95
-65%$89.95
$31.48Carrier 48TM400923 Harness Assembly
