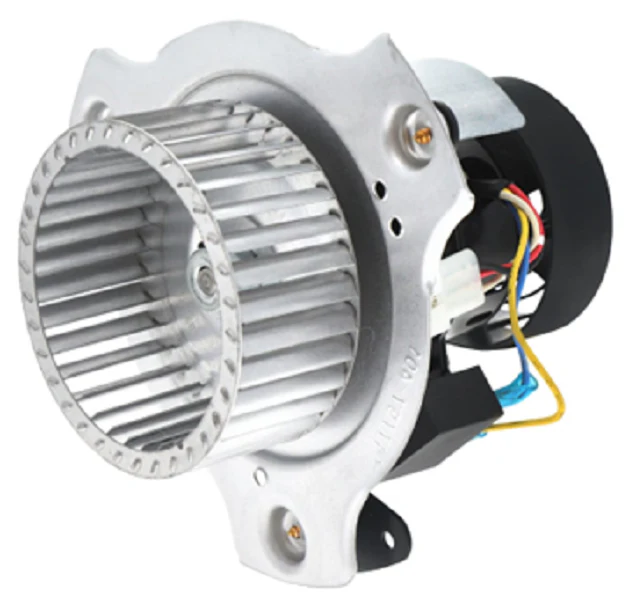

Carrier 349336-761 Inducer Assembly
The Carrier 349336-761 Inducer Assembly is a factory-authorized OEM draft inducer kit designed to replace legacy components in mid-efficiency (80% AFUE) non-condensing furnaces. Engineered for precise ventilation and combustion control, this 115V single-phase assembly provides the necessary negative pressure to purge heat exchangers of flue gases. As the direct 349336-761 replacement for older part numbers 347822-761 and 326628-761, this kit resolves common failure points including seized motor shafts, open windings, and excessive bearing noise. Operating at a nominal 3000 RPM with a 0.21 Amp draw, the motor ensures stable airflow across high and low fire cycles when paired with the included adapter harness. This comprehensive kit includes the blower motor, housing, fan wheel, and a replacement gasket to maintain a hermetic seal against the collector box, preventing exhaust leaks and pressure switch trip errors.
Key Benefits- Broad Compatibility: Functions as a direct drop-in for Carrier, Bryant, and Payne units, streamlining the truck stock for furnace draft inducer repairs.
- Complete Installation Kit: Includes the inducer motor assembly, wiring adapter for single-stage conversions, mounting screws, and a new high-temp gasket.
- Optimized Performance: Features a CCW lead end rotation and internal thermal overload protection to handle the high-static demands of modern HVAC ventilation systems.
- Quiet Operation: Precision-balanced blower wheel reduces vibration-induced noise, a frequent complaint with worn 326628-761 assemblies.
Is the 349336-761 compatible with single-stage furnaces?
Yes. While the motor is a two-speed design, the kit includes a specific adapter harness to allow seamless single-stage furnace operation by matching the wiring configuration of older models.
What are the signs that my inducer assembly needs replacement?
Technicians should look for a furnace inducer fault indicated by a "code 42," audible rattling or grinding from the ball bearings, or the motor failing to spin despite receiving 115V from the control board.
Do I need to apply silicone if a gasket is included?
The kit provides a replacement inducer gasket. While the gasket is usually sufficient, veteran techs often use a small amount of high-temp RTV to ensure a secondary seal against the collector box if the flange is uneven.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
