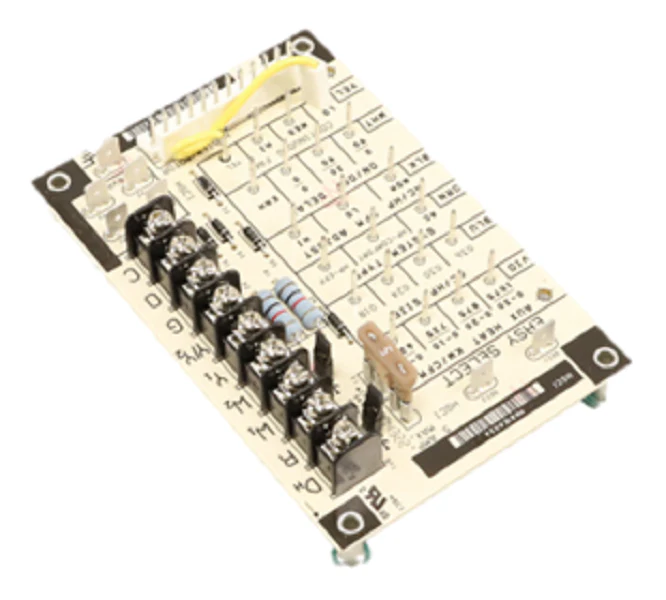

Carrier 345606-75101 Circuit Board
The Carrier 345606-75101 Control Board is a critical OEM replacement part engineered for high-performance management of furnace and air handler operations. This printed circuit board (PCB) serves as the system’s central logic hub, coordinating the blower motor, ignition sequence, and thermostat communication to ensure precise climate regulation. Designed for Carrier, Bryant, and Payne equipment, this factory-authorized component replaces aging or failed boards that cause inconsistent cycling or system communication errors. Its advanced circuitry facilitates real-time data monitoring from unit sensors, optimizing airflow and maintaining setpoints within a robust operating temperature range of 40°C to 85°C. For contractors performing a furnace control board replacement, this board offers a direct-fit solution that eliminates the compatibility risks associated with generic universal modules. Whether you are troubleshooting a faulty HVAC startup sequence or restoring two-way communication in a high-efficiency system, this genuine Carrier HVAC circuit board provides the reliability required for professional-grade repairs and long-term system stability.
- OEM Integration: Guaranteed compatibility with Carrier, Bryant, and Payne models for seamless drop-in installation without field modifications.
- Precision Control: Manages complex HVAC system functions, including fan speed regulation and multi-mode operation (cooling, heating, and dehumidification).
- Industrial Durability: Built to withstand thermal stress, with a compact 100mm x 80mm footprint designed for standard electrical enclosures.
- Enhanced Logic: Improved diagnostic capabilities help identify system faults, reducing diagnostic time for technicians during service calls.
Common Questions
Is this a direct replacement for my existing Carrier control board?
Yes, the 345606-75101 is a factory-authorized printed circuit board designed to replace specific original part numbers in Carrier-brand equipment. Always verify your model and serial number on the unit’s rating plate before installation.
Will this board resolve intermittent blower motor issues?
If the motor itself tests within spec, a faulty relay or logic gate on the control board is often the culprit. This OEM replacement part restores proper voltage signaling to the blower motor and inducer.
Does this board support communicating thermostats?
This board supports the standard logic required for Carrier HVAC communication, though specific advanced features like those in Infinity systems depend on the overall equipment configuration and thermostat model.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
