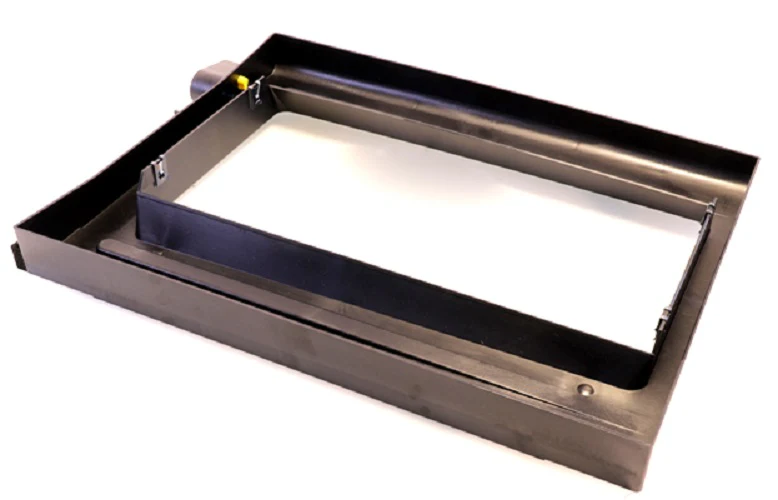

Carrier 343312-75101 Drain Pan
For field technicians and contractors managing Carrier HVAC system maintenance, the Carrier 343312-75101 Vertical Drain Pan is the direct OEM replacement engineered for precise moisture management. Measuring 21x16x2 inches, this vertical condensate drain pan is designed for high-efficiency condensate collection within the air handler or evaporator coil cabinet. This robust component effectively channels water away to prevent HVAC water damage and localized overflow, ensuring the integrity of the secondary drainage system. Manufactured with industrial-grade materials, the 343312-75101 provides a seamless fit for specific vertical configurations where standard pans fail to align with the original drain ports. Whether you are performing a routine HVAC evaporator coil repair or a vertical drain pan replacement, using a genuine Carrier factory authorized part ensures that the drainage pitch and dimensions meet the manufacturer's exact airflow and moisture removal specifications, maintaining system efficiency without the need for field modifications.
Key Benefits- Precision Fit: Specifically engineered for vertical orientations to ensure zero-clearance alignment with Carrier evaporator coils.
- Enhanced Drainage: The 21x16x2 dimensions provide a high-capacity reservoir to handle peak condensate loads during high-humidity cycles.
- OEM Reliability: Built with high-strength composite materials to resist cracking and the corrosive effects of standing condensate.
- Reduced Service Calls: Prevents common moisture-related issues such as mold growth and equipment corrosion by directing water efficiently to the primary drain line.
Is the Carrier 343312-75101 compatible with my specific air handler?
This drain pan is a direct replacement for many vertical Carrier units. Verification against your specific model's parts list is required, as internal cabinet dimensions vary between tonnage and series.
What are the exact dimensions for installation clearance?
The pan measures 21 inches long, 16 inches wide, and has a depth of 2 inches. Ensure the internal cabinet rail supports are clear of debris to allow for a level, seated fit.
Can this be used in horizontal applications?
No, the 343312-75101 is specifically designed for vertical HVAC installations. Using a vertical pan in a horizontal airflow configuration will lead to improper drainage and potential water bypass.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
