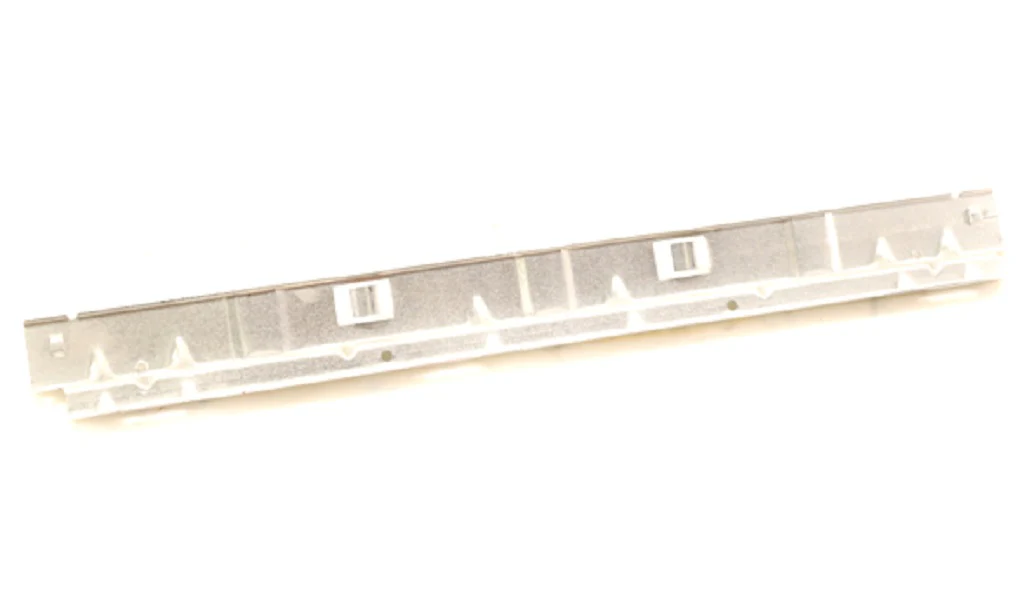

Carrier 343129-75101 Side Coil Support
The Carrier 343129-75101 Side Coil Support is a critical structural component designed for precise alignment and stability within Carrier residential evaporator coils and fan coil units. Engineered to meet exact OEM tolerances, this heavy-gauge galvanized steel bracket prevents coil shifting and ensures proper condensate drainage by maintaining the heat exchanger's position during high-static pressure operations. This HVAC replacement part is vital for technicians performing a coil housing repair or a full evaporator coil installation, providing the necessary rigidity to prevent vibration-induced leaks or airflow bypass. By utilizing a genuine Carrier coil support bracket, contractors ensure direct compatibility with existing mounting points, avoiding the field modifications required with generic hardware. This component is essential for maintaining the structural integrity of the indoor section, particularly in multi-position furnace applications where coil stability is paramount for long-term system performance and efficient heat transfer.
Key Benefits
- OEM Fitment: Designed specifically for Carrier evaporator coil assemblies, ensuring perfect hole alignment and structural support.
- Corrosion Resistance: Fabricated from galvanized steel to withstand the high-moisture environment found within the coil cabinet.
- Structural Stability: Prevents sagging or displacement of the heavy copper/aluminum coil slab, protecting the primary drain pan.
- Installation Efficiency: Direct drop-in replacement reduces labor time during complex teardowns and coil cabinet maintenance.
Common Questions
Is the Carrier 343129-75101 compatible with Bryant or Payne units?
Yes, as part of the Carrier family of brands, this side coil support is cross-compatible with several Bryant and Payne evaporator coil models that share the same cabinet architecture.
Why is my coil leaning or shifting inside the cabinet?
This usually indicates a failed or corroded coil support bracket. Replacing it with a 343129-75101 restores the proper pitch for drainage and prevents airflow restriction.
What happens if I don’t replace a damaged coil support?
A compromised support can lead to the coil resting directly on the drain pan, potentially cracking the plastic or leading to condensate blow-off and water damage within the air handler.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
