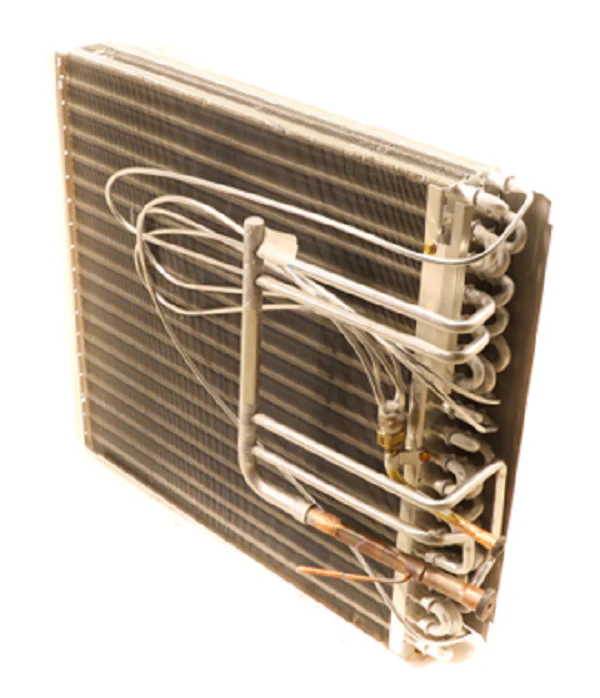

Carrier 342796-75105 Evaporator Coil
Professional-grade Carrier 342796-75105 Evaporator Coil is a critical OEM replacement component designed for high-efficiency heat transfer in residential air handling units. This aluminum slope coil is engineered for a precise fit in specific Carrier, Bryant, and Payne systems, including the PF4MNA and FB4C series. Its advanced all-aluminum construction provides superior resistance against formicary corrosion, ensuring long-term structural integrity and steady thermal performance under high-demand cooling cycles. The unvased slope design optimizes airflow across the fins and facilitates effective condensate drainage, which is essential for maintaining indoor air quality and preventing biological growth within the plenum.
For contractors performing HVAC system repairs or coil upgrades, the 342796-75105 offers a streamlined installation path by superseding legacy part numbers such as 340167-7005 and 316224-757. Utilizing genuine Carrier factory authorized parts ensures the indoor coil maintains the original AHRI-rated efficiency of the split system. This direct replacement evaporator coil is built to withstand operating pressures associated with modern refrigerants, providing reliable latent and sensible heat removal to meet rigorous comfort standards in 1.5 to 2-ton applications.
Key Benefits for Technicians:- OEM Compatibility: Precision-engineered for a drop-in fit in Carrier PF4MNA and FB4C air handlers, reducing field modification time.
- Corrosion Resistance: High-grade aluminum fin and tube metallurgy eliminates the risk of copper-based formicary leeks.
- Optimized Drainage: The slope-coil configuration ensures rapid moisture shedding to the drain pan, preventing water blow-off into the ductwork.
- Legacy Support: This kit serves as a validated OEM replacement part for multiple discontinued ICP and Carrier coil models.
- Performance Reliability: Manufactured to strict factory tolerances to ensure proper refrigerant metering and heat exchange efficiency.
Which refrigerant types are compatible with this coil?
This Carrier evaporator coil is designed to meet the pressure requirements of modern high-pressure refrigerants typically found in R-410A systems, though you must verify the specific expansion valve (TXV/piston) compatibility for your application.
Does this unit include a factory-installed casing?
No, the 342796-75105 is a slope coil kit primarily intended for uncased installations or for replacement within an existing coil housing where the cabinet remains intact.
What are the physical dimensions for clearance?
The unit measures approximately 25 inches in length, 18.5 inches in width, and 8.5 inches in height, making it suitable for tight plenum transitions in residential configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
