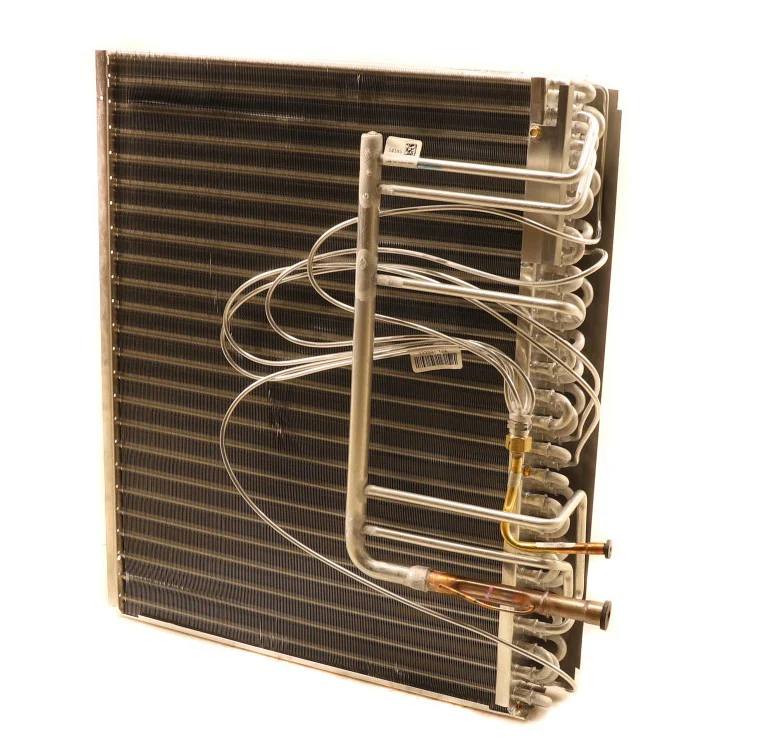

Carrier 342796-75103 Evaporator Coil
The Carrier 342796-75103 Evaporator Coil is a precision-engineered OEM replacement part designed for integration into high-efficiency Carrier air handler systems. This slope-coil assembly is built with high-grade aluminum fins and aluminum tubing, providing superior resistance to formicary corrosion and ensuring long-term thermal transfer reliability in residential and light commercial settings. Designed specifically for R-410A refrigerant cycles, this unmanaged evaporator coil facilitates efficient heat absorption and dehumidification, maintaining peak system static pressure and airflow ratings. Rated at approximately 17 lbs and measuring 25.25" x 24.5" x 8.25", this component provides a direct fit for various ICP, Bryant, and Payne models. Professional contractors prefer this aluminum evaporator coil for its exact manifold alignment and durable header construction, which minimizes the risk of refrigerant leaks compared to traditional copper-fin alternatives. Utilizing a genuine Carrier coil kit ensures the air handler maintains its original AHRI certified performance and energy efficiency ratings.
Key Benefits for Technicians:- Direct OEM Compatibility: Engineered as a drop-in replacement for ICP part numbers 340156-7004, 340167-7003, and 316224 series to ensure perfect cabinet fitment.
- Advanced Corrosion Resistance: All-aluminum construction prevents the "leaky coil" syndrome often found in mixed-metal environments.
- Optimized Heat Exchange: Designed with a specific fin density to maximize surface area contact without compromising system static pressure.
- R-410A Readiness: Factory-tested to handle the pressures of modern refrigerants, ensuring seamless integration with existing TXVs or pistons.
Is the Carrier 342796-75103 compatible with older R-22 systems?
This coil is specifically optimized for R-410A systems. While the physical dimensions may match older air handlers, the metering device and internal pressures must be verified by a licensed technician to ensure compatibility with the outdoor condenser.
What are the primary dimensions for cabinet clearance?
The unit features a length of 25.25 inches, a width of 24.5 inches, and a height of 8.25 inches. Technicians should verify the slope configuration and drain pan clearances before finalizing the installation.
Does this kit include the expansion valve (TXV)?
This is the evaporator coil assembly. Depending on the specific application and SEER rating of the matching condenser, the metering device (TXV or fixed orifice) may need to be sourced separately or transferred from the existing unit if compatible.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
