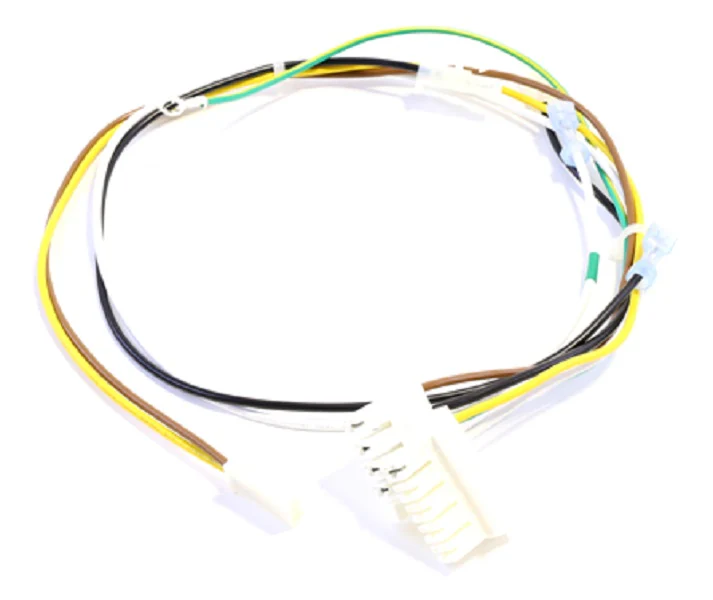

Carrier 337553-701 Blower Harness Assy
When you're dealing with intermittent blower failure or high-resistance faults in premium Carrier systems, the Carrier 337553-701 Blower Harness Assy is the precise field-replacement solution required for restoration. This OEM Carrier furnace blower harness is engineered to handle high-amperage cycles and maintain signal integrity between the integrated furnace control (IFC) and the motor. As a Factory Authorized Part, it prevents common issues like voltage drop and harness overheating that often plague "universal" aftermarket kits. Designed for a direct-fit harness installation, it features polarized connectors to eliminate cross-wiring risks during a tight swap in the blower compartment.
For technicians servicing 58CTW or 59TP6A series units, this blower motor wiring assembly ensures the pulse width modulation (PWM) or multi-tap speed signals reach the motor without interference. It is a critical component for maintaining consistent airflow and preventing static discharge issues at the connector pins. Using a Carrier 337553-701 replacement preserves the original equipment's engineering specifications, ensuring the HVAC blower harness meets the exact heat-rating and pin-tension requirements for long-term reliability in high-heat environments.
Key Benefits
- Direct-Fit OEM Compatibility: Specifically designed for Bryant, Payne, and Carrier furnaces, ensuring the connector pins and lead lengths align perfectly with factory mounting points.
- Signal Integrity: High-grade insulation and precision crimps prevent signal noise and resistance buildup, which are essential for variable-speed motor performance.
- Simplified Field Service: Uses factory-standard color coding and keyed connectors to streamline the installation process and reduce diagnostic time.
- Thermal Resilience: Constructed with wire jackets rated for the high-ambient temperatures found within the blower housing and heat exchanger proximity.
Common Questions
Which furnace models use the 337553-701 harness?
This assembly is primarily found in Carrier 58CTW, 58CVA, 59TP6A, and related Bryant/Payne gas furnaces utilizing ECM or multi-speed blower motors.
Does this harness include the motor-side and board-side connectors?
Yes, this is a complete assembly that bridges the control board terminals to the blower motor, including the necessary Molex or polarized plugs for a secure connection.
Can I use this if my original harness has evidence of "arching" at the plug?
If you see scorched pins or melted plastic at the harness connector, this is the exact replacement needed. Always inspect the male pins on the motor or board side for damage before connecting the new harness.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
