Carrier 332505-751 Hot Surface Ignitor Kit
The Carrier 332505-751 Hot Surface Ignitor Kit is a critical OEM replacement part designed for mid-efficiency gas furnaces featuring a 40-inch cabinet height. As a veteran technician, you know that consistent ignition is the backbone of any reliable 24V furnace control circuit. This kit serves as a direct upgrade, often replacing older silicon carbide ignitors like the LH33ZS004 with a more robust 120V heating element. It is engineered to withstand the thermal expansion cycles associated with modern hot surface ignition sequences, ensuring the gas burners light successfully on the first trial for ignition.

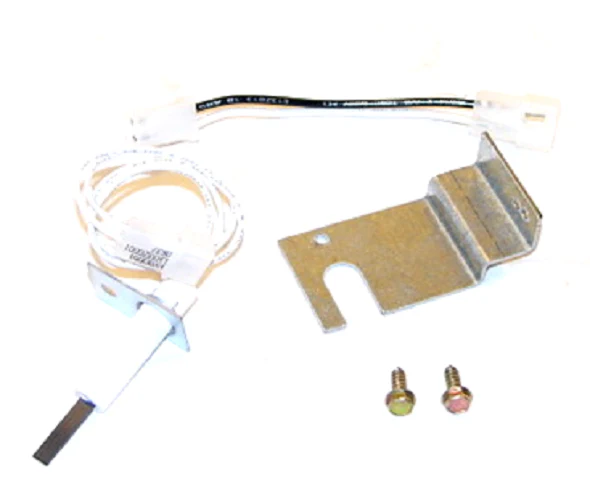

Packaged as a comprehensive furnace igniter kit, the 332505-751 includes the necessary bracketry, wiring harness, and mounting hardware to streamline field installations. It is specifically compatible with a wide range of Carrier, Bryant, and Payne models, including the 58PAV, 58RAV, 58WAV, and 330AAV series. By utilizing a factory-authorized glow plug, you maintain the original equipment specifications, which is essential for avoiding nuisance lockouts and ensuring the flame rectification circuit functions within precise microamp ranges.
Key Benefits for Contractors- Direct OEM Compatibility: Eliminates the guesswork and fitment issues common with universal "one-size-fits-all" ignitors in Carrier gas furnaces.
- Complete Installation Kit: Includes the ignitor, specialized bracket, and leads, reducing time spent on the truck searching for hardware.
- Enhanced Durability: Constructed to resist carbon buildup and moisture, factors that typically lead to igniter failure in high-cycle environments.
- System Efficiency: Proper hot surface igniter timing prevents delayed ignition and ensures optimal fuel-to-air combustion at the burner head.
What is the typical resistance range for this ignitor?
When testing with a multimeter at room temperature, a functional 332505-751 typically shows continuity with a resistance reading between 30 and 200 ohms, depending on the specific element material used in the current revision.
Can I touch the element with my bare hands?
No. Skin oils can cause "hot spots" on the surface of hot surface ignitors, leading to premature structural failure. Always handle the component by the ceramic base or use clean gloves during installation.
Which furnace models does this kit support?
This OEM Hot Surface Ignitor Kit is designed for 40-inch tall models, including popular series such as 58PAV, 58RAV, 58WAV, 58TUA, and 330AAV.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
