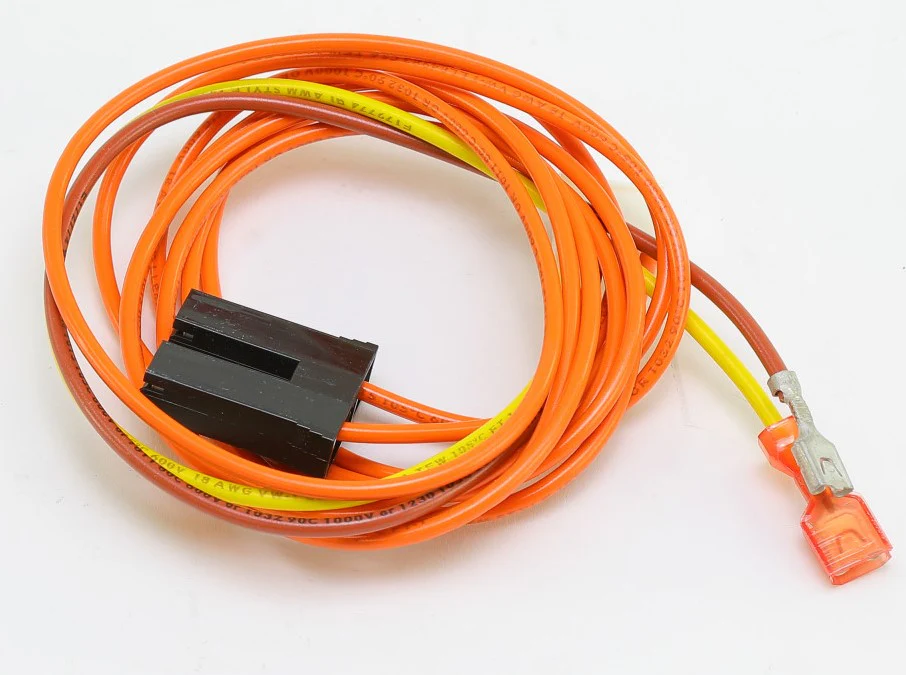

Carrier 325766-704 Wiring Harness
When you're out on a service call and a heat pump isn't switching between heating and cooling cycles, you need a reliable Carrier 325766-704 Wiring Harness to restore the signal logic. This genuine reversing valve wiring harness is specifically engineered for Carrier and Bryant heat pump systems, providing a secure electrical path between the reversing valve solenoid and the main control board. As a Carrier HVAC replacement part, it ensures the 24V signal accurately dictates the position of the slide valve, essential for maintaining proper refrigerant flow. Replacing a frayed or corroded reversing valve solenoid harness with this OEM component prevents intermittent operation and potential compressor stress caused by short-cycling. Whether you are performing a heat pump repair or a routine system overhaul, this harness facilitates a direct-fit installation that matches factory terminal configurations, ensuring the HVAC reversing valve wiring meets original equipment manufacturer standards for conductivity and insulation.
Key Benefits:- OEM Compatibility: Precision-fit for specific Carrier, Bryant, and Payne heat pump models, including the 38YXA and 38YRA series.
- Secure Signal Transmission: Ensures consistent 24V communication to manage the heat pump's reversing cycle without voltage drops.
- Durable Construction: Built with high-grade insulation and terminal connectors to withstand the vibration and thermal fluctuations of the outdoor condenser unit.
- Direct Plugin Design: Designed for an exact match to factory wiring diagrams, reducing field diagnostic time and installation errors.
What are the symptoms of a failing reversing valve wiring harness?
Technicians often find that a damaged harness causes the unit to "stick" in one mode or produce a clicking sound at the solenoid without the valve actually shifting. Inspect for brittle insulation or corroded pins at the connector.
Is this harness compatible with all Carrier heat pumps?
No, this is a model-specific reversing valve wiring harness. It is widely used in residential split-system units like the 38YCC and 324ANS series, but you should always verify the part number against your specific unit’s wiring diagram.
Does this include the solenoid coil?
This part is the wiring harness alone. If the coil itself has failed electrically, it may need to be ordered separately, though the harness is the primary failure point for signal loss due to environmental exposure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $41.16
-65%$41.16
$14.41Carrier 325766-704 Wiring Harness
When you're out on a service call and a heat pump isn't switching between heating and cooling cycles, you need a reliable Carrier 325766-704 Wiring Harness to restore the signal logic. This genuine reversing valve wiring harness is specifically engineered for Carrier and Bryant heat pump systems, providing a secure electrical path between the reversing valve solenoid and the main control board. As a Carrier HVAC replacement part, it ensures the 24V signal accurately dictates the position of the slide valve, essential for maintaining proper refrigerant flow. Replacing a frayed or corroded reversing valve solenoid harness with this OEM component prevents intermittent operation and potential compressor stress caused by short-cycling. Whether you are performing a heat pump repair or a routine system overhaul, this harness facilitates a direct-fit installation that matches factory terminal configurations, ensuring the HVAC reversing valve wiring meets original equipment manufacturer standards for conductivity and insulation.
Key Benefits:- OEM Compatibility: Precision-fit for specific Carrier, Bryant, and Payne heat pump models, including the 38YXA and 38YRA series.
- Secure Signal Transmission: Ensures consistent 24V communication to manage the heat pump's reversing cycle without voltage drops.
- Durable Construction: Built with high-grade insulation and terminal connectors to withstand the vibration and thermal fluctuations of the outdoor condenser unit.
- Direct Plugin Design: Designed for an exact match to factory wiring diagrams, reducing field diagnostic time and installation errors.
What are the symptoms of a failing reversing valve wiring harness?
Technicians often find that a damaged harness causes the unit to "stick" in one mode or produce a clicking sound at the solenoid without the valve actually shifting. Inspect for brittle insulation or corroded pins at the connector.
Is this harness compatible with all Carrier heat pumps?
No, this is a model-specific reversing valve wiring harness. It is widely used in residential split-system units like the 38YCC and 324ANS series, but you should always verify the part number against your specific unit’s wiring diagram.
Does this include the solenoid coil?
This part is the wiring harness alone. If the coil itself has failed electrically, it may need to be ordered separately, though the harness is the primary failure point for signal loss due to environmental exposure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
