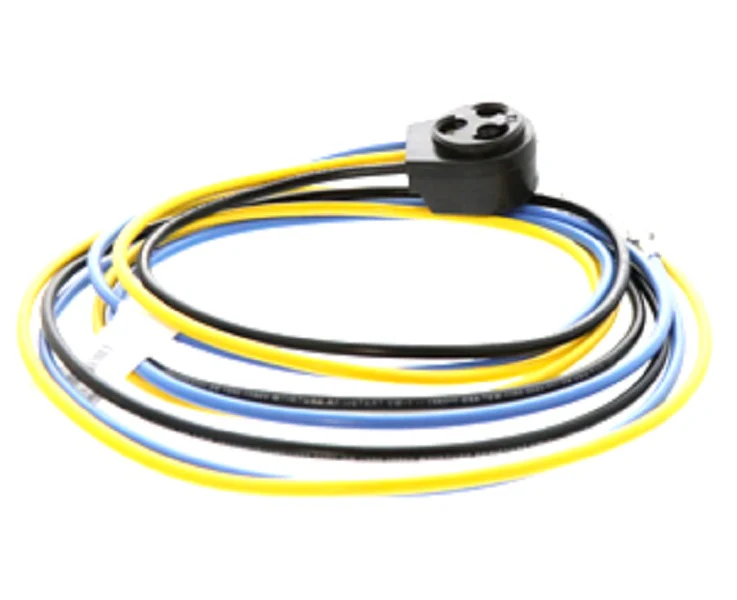

Carrier 317749-407 Compressor Plug
The Carrier 317749-407 Compressor Plug is a heavy-duty wiring harness designed for reliable power delivery to high-amperage hermetic compressors. Featuring 52-inch leads constructed from 12 AWG wire, this molded plug ensures minimal voltage drop and superior thermal resistance in demanding HVACR applications. This specific assembly is the authorized direct replacement for 317749-402, providing a seamless retrofit for technicians servicing Carrier, Bryant, and Payne condensing units. The precision-engineered compressor power cable utilizes high-grade insulation to withstand the corrosive effects of refrigerant oils and extreme temperature fluctuations within the cabinet. Proper installation of this 3-pin compressor plug is critical for preventing terminal venting and ensuring the electrical integrity of the compressor's start-run-common circuit. For field service efficiency, the 12-gauge thickness supports higher current loads, making it a staple for HVAC compressor wiring repairs where original factory leads have become brittle or compromised.
Key Benefits
- Enhanced Durability: 12 AWG leads provide superior current-carrying capacity compared to standard thinner gauge alternatives.
- Extended Reach: The 52-inch lead length offers ample slack for clean routing and management within the electrical compartment.
- Direct OEM Match: Engineered to replace part number 317749-402 without requiring field modifications to the terminal pins.
- Reliable Connection: Molded plug design creates a tight, moisture-resistant seal at the compressor terminal fence.
Common Questions
Is the 317749-407 compatible with older 317749-402 installations?
Yes, this part is the manufacturer-designated upgrade and direct replacement for the 402 series, maintaining identical pin configuration and electrical specifications.
What is the maximum ampacity for this compressor plug?
Using 12 AWG copper conductors, this harness is rated for high-current applications typically found in residential and light commercial split system compressors.
How do I ensure a proper seal when installing this lead set?
Ensure the compressor terminals are free of carbon buildup and oxidation before seating the molded plug. The 12-gauge wire should be secured with zip ties to prevent contact with hot discharge lines.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
