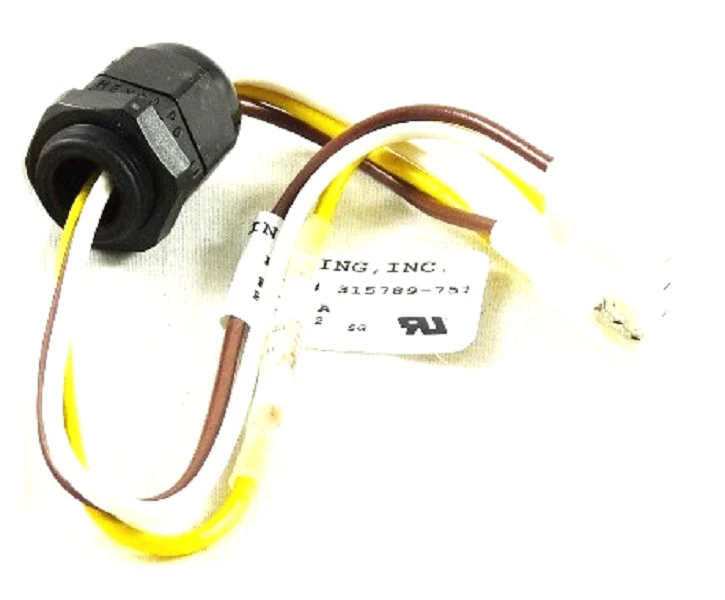

Carrier 315789-751 Pilot Harness
The Carrier 315789-751 Pilot Harness is a critical OEM replacement part designed for specific gas furnace models within the 320AAZ and 398AAW series. This pilot burner wiring harness features an integrated fusible link, acting as a high-limit safety mechanism that interrupts the ignition circuit if excessive temperatures are detected near the pilot assembly. Built for long-term durability in high-cycle HVAC systems, the harness ensures a secure electrical path between the pilot and the main furnace control module. Utilizing a factory authorized part like the 315789-751 is essential for maintaining the integrity of the ignition sequence and ensuring that safety protocols, such as flame sensing and overheat protection, function according to original manufacturer specifications. Its heavy-duty insulation is engineered to resist thermal degradation, preventing intermittent signals or short circuits commonly found in substandard aftermarket alternatives.
Key Benefits:- Enhanced Safety: The built-in fusible link provides essential over-temperature protection by cutting power to the gas valve if the pilot area overheats.
- Direct OEM Compatibility: Specifically engineered for Carrier gas furnace troubleshooting and repair, ensuring a precise fit for 320AAZ and 321AAZ series equipment.
- Reliable Ignition: Heavy-duty HVAC wiring prevents signal loss and voltage drops, maintaining consistent pilot light operation and reliable furnace startup.
- Flame-Retardant Construction: Designed with industrial-grade materials to withstand the concentrated heat environment of a furnace burner cabinet.
How do I tell if my 315789-751 harness has failed?
If your furnace fails to initiate the ignition sequence or the pilot won't stay lit, the fusible link may have blown due to a rollout condition or excessive heat. You can use a multimeter to check for continuity across the harness; a reading of "Open" or "Infinite" resistance typically indicates a failed safety link that requires full harness replacement.
Can I repair the fusible link on the pilot harness?
No. The fusible link is a safety-critical component. Attempting to bypass or repair the link is dangerous and can lead to system damage or fire hazards. The entire Carrier pilot harness must be replaced to restore the unit's safety certifications.
Is this harness compatible with all Carrier gas furnaces?
While it fits several popular Carrier, Bryant, and Payne models (including the 398AAW036060 and 320AAZ042080), it is not universal. Always verify your specific model number against the equipment manual to confirm compatibility before installation.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $164.47
-65%$164.47
$57.56Carrier 315789-751 Pilot Harness
The Carrier 315789-751 Pilot Harness is a critical OEM replacement part designed for specific gas furnace models within the 320AAZ and 398AAW series. This pilot burner wiring harness features an integrated fusible link, acting as a high-limit safety mechanism that interrupts the ignition circuit if excessive temperatures are detected near the pilot assembly. Built for long-term durability in high-cycle HVAC systems, the harness ensures a secure electrical path between the pilot and the main furnace control module. Utilizing a factory authorized part like the 315789-751 is essential for maintaining the integrity of the ignition sequence and ensuring that safety protocols, such as flame sensing and overheat protection, function according to original manufacturer specifications. Its heavy-duty insulation is engineered to resist thermal degradation, preventing intermittent signals or short circuits commonly found in substandard aftermarket alternatives.
Key Benefits:- Enhanced Safety: The built-in fusible link provides essential over-temperature protection by cutting power to the gas valve if the pilot area overheats.
- Direct OEM Compatibility: Specifically engineered for Carrier gas furnace troubleshooting and repair, ensuring a precise fit for 320AAZ and 321AAZ series equipment.
- Reliable Ignition: Heavy-duty HVAC wiring prevents signal loss and voltage drops, maintaining consistent pilot light operation and reliable furnace startup.
- Flame-Retardant Construction: Designed with industrial-grade materials to withstand the concentrated heat environment of a furnace burner cabinet.
How do I tell if my 315789-751 harness has failed?
If your furnace fails to initiate the ignition sequence or the pilot won't stay lit, the fusible link may have blown due to a rollout condition or excessive heat. You can use a multimeter to check for continuity across the harness; a reading of "Open" or "Infinite" resistance typically indicates a failed safety link that requires full harness replacement.
Can I repair the fusible link on the pilot harness?
No. The fusible link is a safety-critical component. Attempting to bypass or repair the link is dangerous and can lead to system damage or fire hazards. The entire Carrier pilot harness must be replaced to restore the unit's safety certifications.
Is this harness compatible with all Carrier gas furnaces?
While it fits several popular Carrier, Bryant, and Payne models (including the 398AAW036060 and 320AAZ042080), it is not universal. Always verify your specific model number against the equipment manual to confirm compatibility before installation.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
