Carrier 17122000002564 Circuit Board

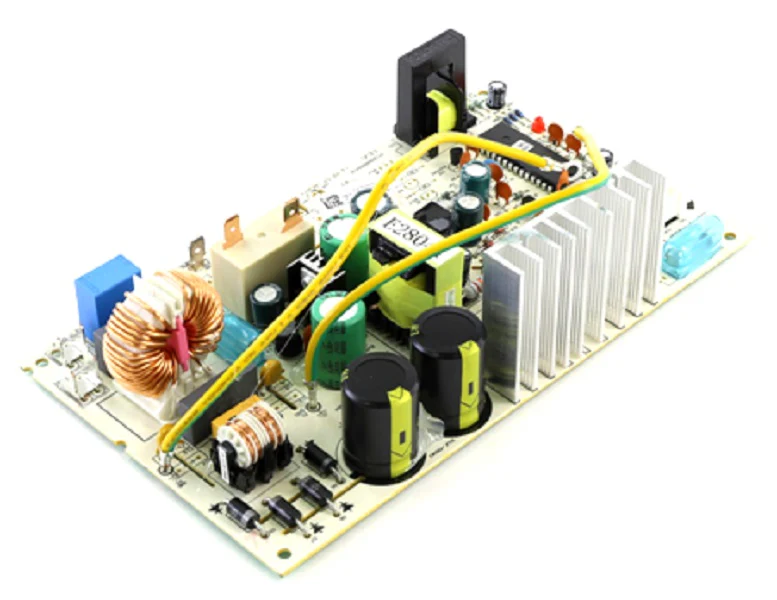

The Carrier 17122000002564 Circuit Board is a critical OEM replacement control board specifically engineered for Carrier outdoor units, including the 38MVC009-101 series. Built with advanced microprocessor technology, this board manages the complex sequence of operations for ductless mini-split systems and residential condensing units. It serves as the primary communication hub between the thermostat and high-voltage components, directly regulating the compressor, outdoor fan motor, and expansion valves to maintain system equilibrium. With 20A amperage handling and 12VDC/250VAC voltage specifications, this integrated controller provides precise monitoring of refrigerant pressure and ambient temperatures, ensuring the HVAC outdoor unit operates within established safety parameters to prevent electrical overloads and mechanical failure.
Key Benefits- Precise System Regulation: Acts as the central electronic control board, timing compressor cycles and fan speeds for maximum thermal efficiency.
- Enhanced System Protection: Integrated diagnostic logic monitors for electrical faults, protecting critical outdoor unit components from voltage spikes.
- Direct OEM Compatibility: Verified as a genuine Carrier replacement part for the 38MVC series, ensuring a precise fit and matching terminal configurations.
- Optimized Performance: Utilizes 12VDC control circuits and 250VAC power handling to sustain rigorous commercial and residential refrigeration demands.
Is the Carrier 17122000002564 compatible with my specific condenser?
This board is designed for specific Carrier and Midea-sourced outdoor units, notably the 38MVC009-101. Technicians should always verify the part number against the unit’s wiring diagram or service manual before installation.
What are the symptoms of a failing outdoor control board?
Common indicators include the outdoor fan failing to engage, the compressor short-cycling, or a total loss of communication with the indoor head. Check for burnt traces or failed relays on the physical board during troubleshooting.
Can I use this board for 240V systems?
Yes, the board supports 250VAC requirements and is 20A rated, making it suitable for standard single-phase 208/230V residential and light commercial applications.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $143.91
-65%$143.91
$50.37Carrier 17122000002564 Circuit Board
