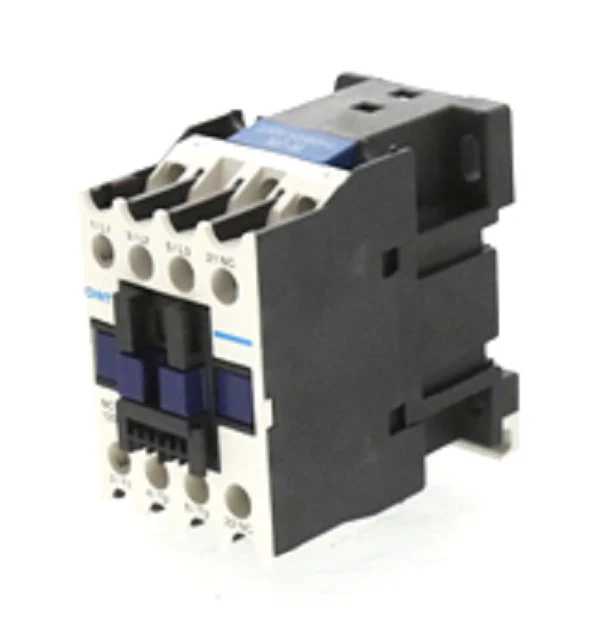

Carrier 11203502000005 Contactor
When you're troubleshooting a condenser unit that won't kick on, the Carrier 11203502000005 Contactor is often the first component to inspect. This genuine OEM replacement part is a 3-pole electromagnetic switch designed for 220V HVAC systems. It serves as the primary controller for high-current loads, specifically allowing the thermostat signal to engage the compressor and outdoor fan motor. Operating at 50/60 Hz with a 12A current rating, this contactor is engineered to withstand the rigorous inductive loads typical of ductless mini-split units and light commercial air conditioning systems. The inclusion of a normally closed (NC) auxiliary contact provides additional feedback or control logic for more complex HVAC control boards, ensuring that the system operates within safe parameters. Field technicians prefer this 3-pole contactor for its durable silver-plated contacts that minimize pitting and arcing, extending the service life of much more expensive components like the motor or compressor. Compatibility includes specific Carrier and Bryant models such as the 38MVQ series, making it a drop-in OEM contactor replacement for a precise electrical fit.
Key Benefits:
- Regulates electrical load to prevent continuous high-current exposure and potential compressor damage.
- Features a 12A rating and 220V capacity, perfectly matched for 3-pole industrial and residential applications.
- Built-in normally closed auxiliary contact allows for enhanced system monitoring and diagnostic integration.
- Utilizes arc suppression technology to reduce contact erosion and prevent welded contact points.
- Ensures ductless mini-split compatibility for a seamless fit without the need for mounting modifications.
Common Questions:
Why is my AC making a chattering or humming sound?
A chattering contactor usually indicates low control voltage or dirty magnet faces. If the 220V coil cannot hold the plunger firmly against the contacts, the resulting vibration creates a loud buzz or clicking sound, which can eventually lead to pitted contacts or total system failure.
Can I use a single-pole contactor to replace this 3-pole model?
No. For safety and compliance with the original HVAC wiring diagram, always use the 3-pole configuration specified by the manufacturer. Using the wrong pole count can leave legs of the circuit energized even when the system is "off," posing a safety risk and potentially damaging the control board.
What are the signs that my contactor has failed?
Common symptoms include visible charring on the housing, a burnt smell, or a compressor that won't start despite the thermostat calling for cooling. If you see melted plastic or heavy oxidation on the silver points, the part should be replaced immediately to avoid a short circuit.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
