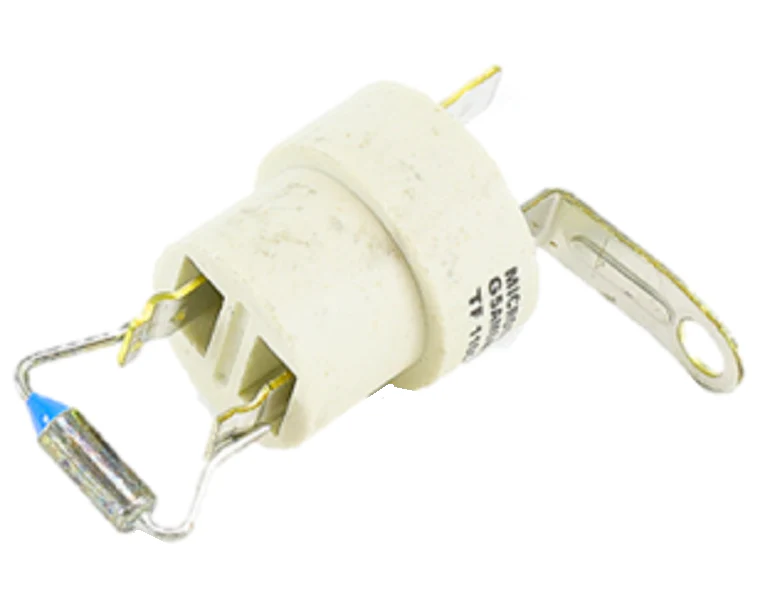

Carrier 10084201 Fuse
The Carrier 10084201 is a high-limit thermal cut-out fuse designed specifically for safety monitoring in Carrier, Bryant, and Payne HVAC assemblies. As a veteran-grade OEM replacement part, this component is calibrated to interrupt the electrical circuit when internal plenum or heat exchanger temperatures reach 110°C (230°F). This critical HVAC safety switch prevents thermal runaway and potential heat exchanger damage by ensuring the system shuts down before exceeding safe operating parameters. Professionals typically find this thermal link integrated into the furnace limit string or blower housing. When troubleshooting a system that fails to initiate the heating cycle or displays a limit circuit lockout code, verifying the continuity of the 10084201 thermal fuse is a standard diagnostic step. This genuine furnace thermal cut-out ensures original factory specifications are maintained for precise overheat protection and system reliability.
Key Benefits:
- Precision Calibration: Formulated to trip at exactly 110°C (230°F), providing a specific fail-safe for high-temperature HVAC environments.
- OEM Compatibility: High-reliability genuine Carrier part ensures seamless fitment and correct electrical resistance within the safety circuit.
- Enhanced Safety: Acting as a non-resettable thermal link, it provides definitive protection against blower motor failure or restricted airflow conditions.
- Contractor Grade: Built to withstand the high-cycle demands of residential and light commercial heating and cooling systems.
Common Questions:
Can this thermal fuse be reset after it trips?
No, the Carrier 10084201 is a one-time thermal link. Once the 230°F temperature threshold is reached and the internal element melts to open the circuit, the part must be replaced to restore system operation.
What causes this HVAC thermal cut-out to fail?
Common causes include restricted return airflow, a failed blower motor, a clogged secondary heat exchanger, or oversized gas orifices. Technicians should always identify the cause of the overheat condition before installing the new fuse.
How do I verify if the 10084201 fuse is blown?
Using a multimeter set to the Ohms (?) scale, check for continuity across the two terminals. A "0" or low resistance reading indicates the fuse is intact; an "OL" or infinite resistance reading indicates the fuse has cleared and requires replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $11.80
