Carrier 06DA660169 Sensor Block Kit

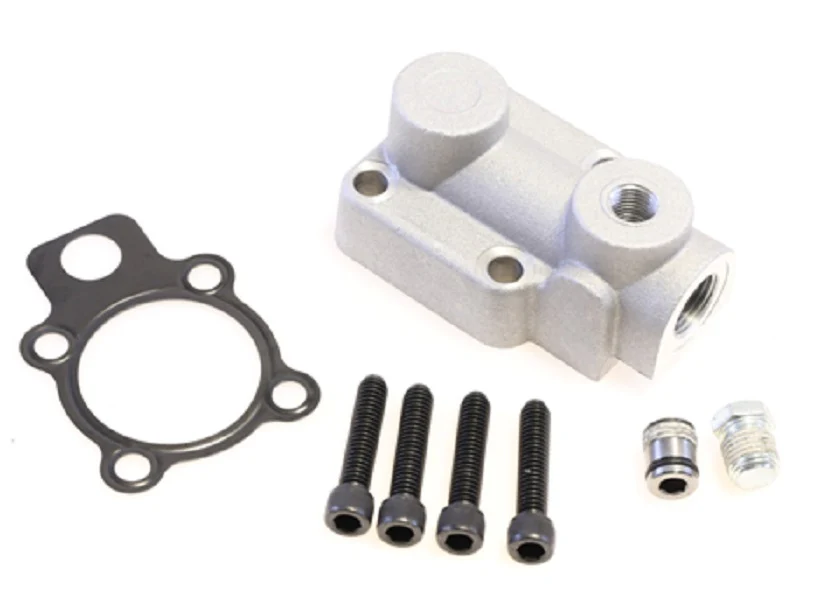

Professional-grade Carrier 06DA660169 Sensor Block Kit is the essential hardware interface for integrating an Oil Pressure Safety Switch (OPSS) into Carlyle 06D, 06E, and 06CC reciprocating compressors. This kit supersedes the Carlyle 06DA660114 and is engineered to mount directly to the pump bearing head, facilitating simultaneous measurement of suction and high-side oil pump pressure without external capillary tubing. By utilizing this OEM replacement sensor block, technicians eliminate common leak points associated with traditional pressure-protected refrigeration circuits. The design supports high-reliability monitoring for both fixed-speed and variable-speed compressors, ensuring the electronic OPSS unit receives accurate differential data to prevent bearing failure. Each Carrier compressor protection kit includes the precision-machined sensor block, a 1/4 inch NPT O-ring fitting, a bead-side-out gasket, and high-tensile socket head bolts for a secure, leak-proof seal. Proper HVAC oil pressure safety starts with this direct-mount solution, which is required for parallel compressor racks and recommended for all single-circuit 06D applications to maintain optimal system longevity and performance.
Key Benefits
- Direct-Mount Engineering: Eliminates the need for supplementary pipe connections and capillary tubes, significantly reducing the risk of refrigerant leaks.
- Broad Compatibility: Fully compatible with Carlyle 06D, 06E, and 06CC compressors, providing a universal upgrade for legacy Danfoss MP54 or Penn P545 setups.
- Robust Construction: Includes high-grade 06DA504473 gaskets and 06EA507202 sensor blocks designed to withstand high-pressure differentials in commercial HVACR environments.
- Simplified Installation: The kit provides all necessary hardware, including the 1/4 inch NPT plug and O-ring fitting, ensuring a professional fit during field service or retrofitting.
Common Questions
Which Carlyle compressors require the 06DA660169 kit?
This kit is required for all 06E compressors and 06D variable-speed models. It is also mandatory for 06D compressors operating in parallel configurations and highly recommended for single-compressor circuits to ensure proper lubrication monitoring.
Does this kit replace the old 06DA660114 sensor block?
Yes, the 06DA660169 is the current production standard and serves as the direct field replacement for the discontinued 06DA660114 kit.
What is the proper torque spec for the mounting bolts?
The four 5/16-18 socket head bolts provided in the kit should be torqued to 15-21 ft/lbs to ensure a proper seal against the bearing head without damaging the gasket interface.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
