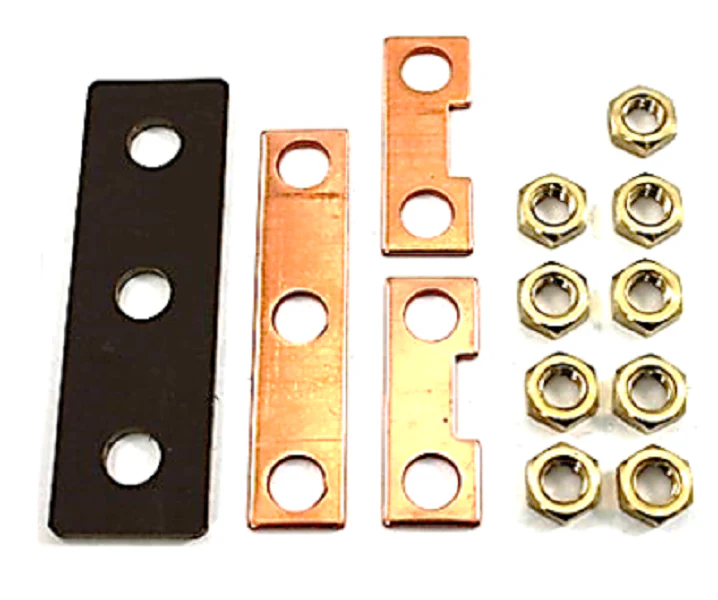

Carlyle 06EA660141 Jumper Terminal Box
For field technicians and contractors maintaining 06E series semi-hermetic reciprocating compressors, the Carlyle 06EA660141 Jumper Terminal Box is a critical electrical interface component. This 6 & 9 JUMPER TERMINAL BOX is specifically engineered to facilitate reliable power distribution and motor protection circuit integration within Carrier 6-cylinder and 9-cylinder compressor architectures. Unlike generic electrical enclosures, this dual-voltage jumper kit provides the precise physical clearance and terminal spacing required for high-amperage HVACR applications. Use of this OEM Carlyle replacement part ensures consistent electrical conductivity and decreases the risk of arcing or terminal venting in demanding commercial refrigeration environments.
Constructed with heavy-duty materials to resist vibration-induced fatigue, the Carlyle terminal box kit includes the necessary hardware for a secure compressor terminal plate connection. It is highly compatible with 06E250, 06E275, 06E299, and 06CC series compressors, maintaining the integrity of the motor protection system. Professionals rely on this part to restore original manufacturer specifications during motor rewinds or terminal repairs, ensuring the HVAC compressor's dual voltage wiring is properly jumpers for 208/230V or 460V configurations without compromising the seal of the conduit entry points.
Key Benefits:- Optimized Compatibility: Designed specifically for Carlyle 06E and 06CC semi-hermetic models to ensure a perfect fit on the terminal plate.
- Industrial Grade Durability: Engineered to withstand the thermal cycling and high-pressure environments of commercial HVACR systems.
- Electrical Safety: Provides secure isolation for jumpers and motor leads, reducing the potential for short circuits to ground.
- Simplified Field Wiring: Facilitates quick identification and connection of terminals for various voltage requirements.
- Does this kit include the terminal insulators and cover? Yes, this assembly traditionally includes the box, cover, and required jumpers for 6 and 9 terminal configurations.
- Is this compatible with 06D series compressors? No, this specific kit is sized for the larger 06E and 06CC frames. For 06D models, a different terminal box series is required.
- Can this be used for both 230V and 460V wiring? Yes, the 06EA660141 is designed to support the jumpering needs for both distinct and triple-voltage motor leads.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $170.57
-65%$170.57
$59.70Carlyle 06EA660141 Jumper Terminal Box
