Carlyle 06EA660087 Terminal Plate

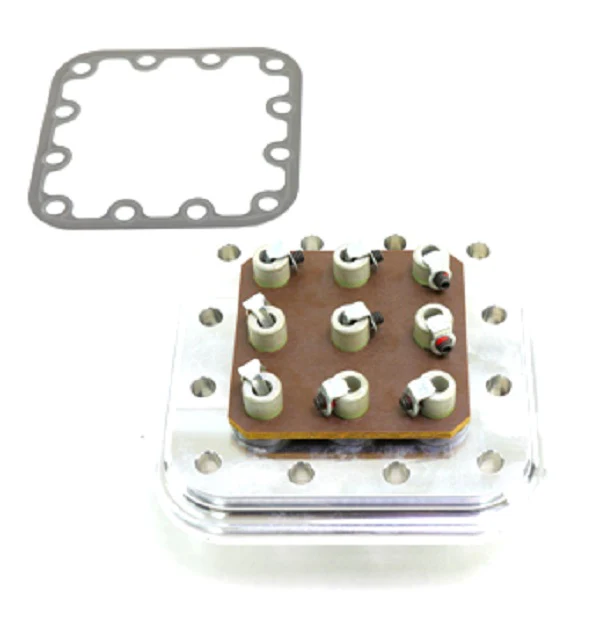

The Carlyle 06EA660087 Terminal Plate is a critical electrical interface component designed specifically for 06E semi-hermetic reciprocating compressors. This 9-point terminal plate serves as the primary connection hub for the compressor motor and high-limit protection sensors, ensuring a secure, pressure-tight seal through the compressor shell. Engineered for durability, it features high-integrity glass-to-metal seals and 1/4-28 terminal studs to handle multi-volt compressor motor requirements while maintaining the hermetic environment essential for commercial refrigeration parts reliability.
For technicians performing a Carlyle compressor terminal plate replacement, this OEM component is the industry standard for 4-cylinder and 6-cylinder 06E models. It is frequently utilized in service and remanufacturing to address compressor terminal leaks or burned terminals that can lead to catastrophic motor failure. When installing, verify that you are using field-supplied ring terminals to effectively seat against the studs. The 9-pin terminal plate configuration is specifically engineered to accommodate complex wiring diagrams involving internal motor protection and auxiliary sensors found in HVAC compressor components.
Key Benefits:
- OEM Compatibility: Precision-fit for 06E Carlyle compressors, supporting 6 power leads and integrated sensor connections.
- Pressure Integrity: Heavy-duty construction designed to maintain the hermetic seal under high-side operating pressures.
- Electrical Efficiency: 9-point terminal layout minimizes voltage drop and provides clear separation for power and control circuits.
- Thermal Resistance: Utilizes high-grade insulation materials to withstand the extreme temperature cycling common in refrigeration compression cycles.
Common Questions:
Can I use this 9-pin plate to replace a 10-pin Robertshaw configuration?
No. The Carlyle 06EA660087 is a 9-point assembly. If your existing compressor uses the 10-pin Robertshaw motor protection system, you must use the 06EA660051 package or perform the recommended conversion to cylinder head sensing protection.
What torque spec should be applied to the terminal nuts?
To prevent damage to the terminal plate studs or "blow-by" at the seal, tighten the extended terminal nuts to a maximum of 30 lb-in (3.4 Nm).
How do I identify if the terminal plate is the source of a refrigerant leak?
Perform a bubble test or use an electronic leak detector around the terminal plate pins. Oil residue around the insulators is often a primary indicator of a failed glass-to-metal seal.
Item is Non Cancelable / Non Returnable
