Carlyle 06DA6606DBSB0310 Kit

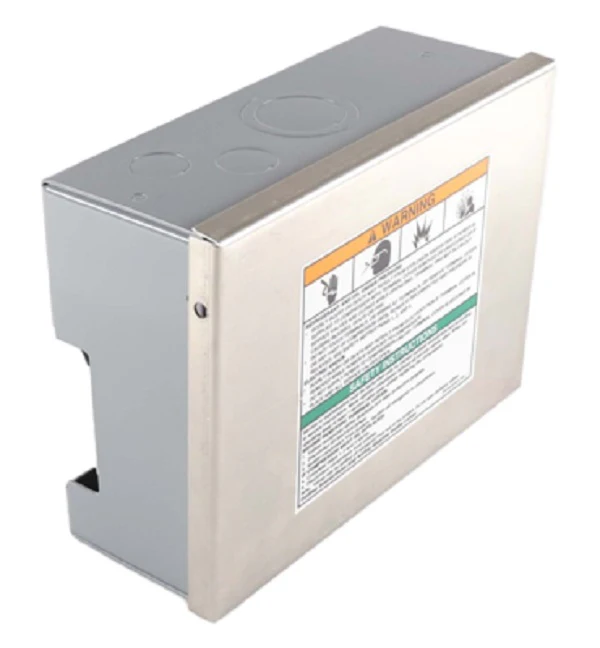

The Carlyle 06DA6606DBSB0310 Kit is a specialized 240v compressor protector module kit designed for field-replacement on legacy Carlyle 06D semi-hermetic reciprocating compressors. This solid-state electronic motor protector acts as a critical failsafe by monitoring Maximum Continuous Current (MCC) and internal motor temperatures. Engineered for 3-phase systems, this kit utilizes two current transformers (CTs) to precisely measure current draw, replacing older electromechanical or hybrid systems often found on 5-pin terminal plate configurations. Pre-programmed to trip at 31.0 Amps (as denoted by the 0310 suffix), it ensures that the compressor operates safely within its designated electrical envelope. Integrating this HVAC replacement part is essential for maintaining system uptime in commercial refrigeration and air conditioning environments where precision current sensing and thermal protection are required to prevent motor burnout. The module is housed in a large folded terminal box designed for indoor applications, facilitating a professional, secure installation for technicians transitioning from legacy protection setups.
Key Benefits:- Precise Current Monitoring: Utilizes dual CTs for accurate current detection, preventing damage from over-amperage conditions.
- Voltage Compatibility: Specifically designed for 240V control circuits, providing a seamless fit for standardized commercial power configurations.
- Legacy System Support: Ideal for Carlyle 06D compressor retrofits featuring the 5-pin terminal plate and internal thermostats.
- Solid-State Reliability: Electronic sensing provides faster response times and more accurate trip points compared to legacy bimetallic overloads.
- Complete Service Solution: Includes the motor protection module and a specialized terminal box to accommodate updated wiring requirements.
- Can I use this kit on a 6-pin terminal compressor? This specific kit is optimized for legacy 5-pin terminal plates with internal thermostats. For 6-pin "universal" compressors using PTC thermistors, different kits like the 06DA6606DBN series may be required depending on the 10th digit of your model number.
- Why does this kit include a new terminal box? The electronic module and CT sensors require more physical space than older electromechanical relays; the provided large folded box ensures all HVAC wiring meets clearance and safety standards.
- What does the '0310' in the part number represent? This designates the MCC trip point in tenths of an Amp. In this case, 0310 corresponds to a 31.0 Amp trip setting. Match this to your compressor nameplate data before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,362.29
-65%$1,362.29
$476.80Carlyle 06DA6606DBSB0310 Kit
The Carlyle 06DA6606DBSB0310 Kit is a specialized 240v compressor protector module kit designed for field-replacement on legacy Carlyle 06D semi-hermetic reciprocating compressors. This solid-state electronic motor protector acts as a critical failsafe by monitoring Maximum Continuous Current (MCC) and internal motor temperatures. Engineered for 3-phase systems, this kit utilizes two current transformers (CTs) to precisely measure current draw, replacing older electromechanical or hybrid systems often found on 5-pin terminal plate configurations. Pre-programmed to trip at 31.0 Amps (as denoted by the 0310 suffix), it ensures that the compressor operates safely within its designated electrical envelope. Integrating this HVAC replacement part is essential for maintaining system uptime in commercial refrigeration and air conditioning environments where precision current sensing and thermal protection are required to prevent motor burnout. The module is housed in a large folded terminal box designed for indoor applications, facilitating a professional, secure installation for technicians transitioning from legacy protection setups.
Key Benefits:- Precise Current Monitoring: Utilizes dual CTs for accurate current detection, preventing damage from over-amperage conditions.
- Voltage Compatibility: Specifically designed for 240V control circuits, providing a seamless fit for standardized commercial power configurations.
- Legacy System Support: Ideal for Carlyle 06D compressor retrofits featuring the 5-pin terminal plate and internal thermostats.
- Solid-State Reliability: Electronic sensing provides faster response times and more accurate trip points compared to legacy bimetallic overloads.
- Complete Service Solution: Includes the motor protection module and a specialized terminal box to accommodate updated wiring requirements.
- Can I use this kit on a 6-pin terminal compressor? This specific kit is optimized for legacy 5-pin terminal plates with internal thermostats. For 6-pin "universal" compressors using PTC thermistors, different kits like the 06DA6606DBN series may be required depending on the 10th digit of your model number.
- Why does this kit include a new terminal box? The electronic module and CT sensors require more physical space than older electromechanical relays; the provided large folded box ensures all HVAC wiring meets clearance and safety standards.
- What does the '0310' in the part number represent? This designates the MCC trip point in tenths of an Amp. In this case, 0310 corresponds to a 31.0 Amp trip setting. Match this to your compressor nameplate data before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
