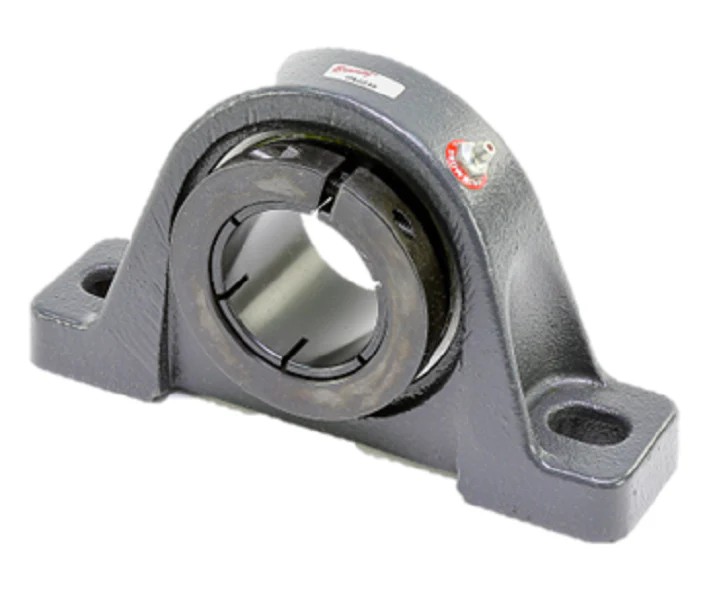

Browning VPB-235AH Pillow Block
The Browning VPB-235AH Pillow Block is a precision-engineered 2 3/16" bore diameter mounted ball bearing specifically designed for HVAC air handler applications. This standard-duty housing is cast from high-grade iron to provide rigid shaft support and dampening against vibration in high-velocity air moving systems. The unit features the BOA concentric locking collar, which ensures 360-degree grip on the shaft to minimize runout and prevent shaft marring during high-torque operation. For debris protection, it utilizes a contact and flinger seal design, maintaining lubricant integrity while shielding the internal raceways from contaminants. This high-temperature air handler bearing is built for reliability in continuous-duty cycles, providing the mechanical stability required for commercial blower assemblies and ventilation equipment. Its re-greasable cast iron housing allows for routine maintenance, ensuring the Browning ValuLine series components withstand the axial and radial loads common in industrial climate control systems.
- BOA Concentric Locking: Provides uniform shaft contact to reduce vibration and extend component life in air handler blower motors.
- Enhanced Sealing: Features a contact and flinger seal system to protect against humidity and particulate ingress in HVAC environments.
- Standard Duty Cast Iron: Rigid housing construction offers superior heat dissipation and structural support for 2-3/16 inch shafts.
- Maintenance Accessible: Integrated grease fitting allows for simplified re-lubrication without requiring full disassembly of the drive system.
Common Questions
How does the BOA concentric locking collar differ from standard set screws?
The BOA concentric locking mechanism uses a split collar to apply even pressure around the entire circumference of the shaft. Unlike set screws, which can cause shaft burrs and eccentric movement, this system maintains a centered, balanced rotation essential for HVAC ventilation fans.
Is the VPB-235AH suitable for high-moisture air handling units?
Yes, the contact and flinger seal is specifically designed to deflect moisture and contaminants away from the bearing raceway, making it an ideal replacement pillow block bearing for rooftop units and indoor AHUs.
Can this bearing handle high-speed blower applications?
The Browning VPB-235AH is engineered for standard-duty air handler speeds. For specific RPM limits, technicians should verify the load ratings against the system's fan curve and drive requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
