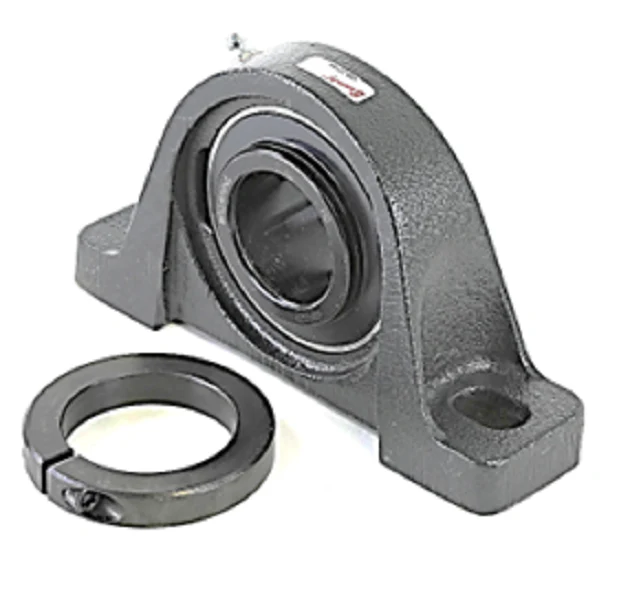

Browning VPB-227 AH Pillow Block
The Browning VPB-227 AH is a standard-duty 1-11/16" bore pillow block bearing specifically engineered for HVAC air handler applications. This unit features high-grade cast iron housing to provide rigid support for fan shafts and blowers. To ensure optimal balance and reduced vibration in airflow systems, it utilizes the BOA concentric locking collar, which provides 360-degree grip on the shaft, minimizing runout and preventing shaft marring compared to standard set screws. The AH (Air Handler) series designation confirms the assembly is ground to closer tolerances for quiet operation. Protection against particulates is managed by a dual-action contact and flinger seal, which maintains lubrication while mechanically repelling dust and debris. This mounted ball bearing is essential for contractors maintaining large-scale ventilation systems where shaft alignment and low acoustic signatures are critical requirements for operational uptime.
Key Benefits- BOA Concentric Locking: Provides a secure, centered 360-degree shaft attachment to reduce vibration in high-RPM fan applications.
- Air Handler Precision: Specifically designed for lower noise levels and tighter tolerances required in commercial HVAC systems.
- Durable Seal Design: Integrated contact and flinger seals prevent contamination from ingress while retaining factory-fill grease.
- Rugged Housing: The cast iron pillow block frame provides excellent vibration dampening and thermal stability.
- Standard Duty Rating: Optimized for the specific radial and axial load requirements found in industrial air-moving equipment.
What is the benefit of the BOA locking collar over a standard set screw?
The BOA concentric collar offers a more uniform grip around the circumference of the shaft. This prevents the shaft-offsetting common with set screws, leads to lower vibration, and makes the bearing easier to remove during future maintenance.
Is the Browning VPB-227 AH suitable for high-moisture air handlers?
While the flinger seals provide excellent protection against dust and light moisture, this standard-duty cast iron unit is best suited for dry airflow environments unless additional protection is specified.
Can I use this for non-HVAC industrial applications?
Yes, while it is optimized for air handlers, it can be used on any 1-11/16" shaft requiring a standard-duty pillow block that benefits from concentric locking and low-vibration performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
