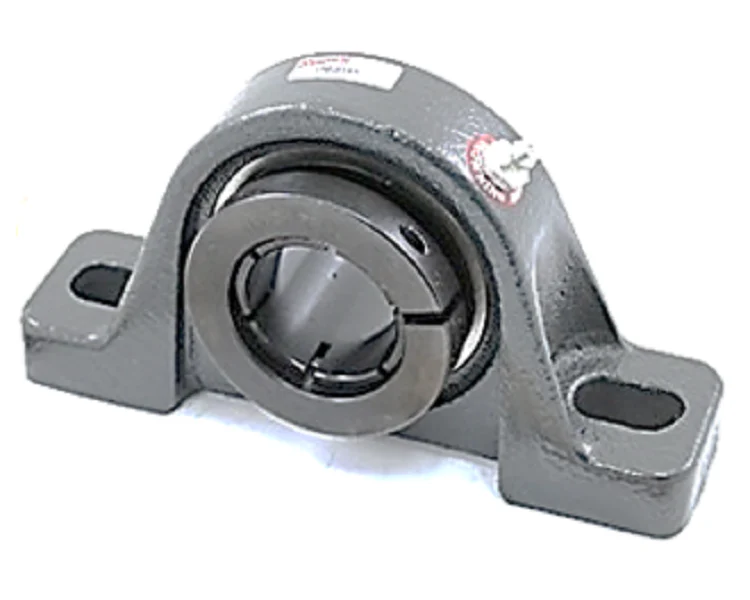

Browning VPB-223 AH Pillow Block
The Browning VPB-223 AH is a precision-engineered 1 7/16" pillow block bearing designed specifically for the rigorous demands of air handling units. Featuring a standard duty cast iron housing, this assembly provides critical structural rigidity and vibration dampening required for high-velocity HVAC systems. The integrated BOA concentric locking collar ensures a 360-degree uniform grip on the shaft, significantly reducing run-out and preventing shaft marring compared to standard set screw designs. To maintain optimal performance in airflow environments, the VPB-223 AH utilizes a contact and flinger seal configuration, preventing dust ingress and grease migration. This mounted ball bearing is the reliable choice for contractors looking to maintain system balance and extend the service life of fan and blower assemblies.
Key Technical Benefits:
- BOA Concentric Locking: Provides a secure, centered attachment to the 1 7/16 inch shaft, minimizing vibration in high-RPM air handler applications.
- HVAC-Modified Housing: The standard duty cast iron construction is optimized for the thermal and mechanical loads of commercial ventilation.
- Enhanced Sealing: Features a contact seal doubled with a flinger to protect the internal raceways from particulate matter and contaminants.
- Factory Lubricated: Ready for immediate installation into air handlers, exhausters, and supply fans.
Common Questions:
What makes an "AH" bearing different from standard pillow blocks?
The "AH" suffix indicates an Air Handler application rating, meaning the internal clearances and noise levels are specifically controlled for quiet, balanced operation inside ventilation systems.
How do I install the BOA locking collar on the VPB-223?
Slide the bearing and collar onto the shaft, then tighten the single cap screw. This concentric system applies even pressure around the circumference of the shaft, unlike two-point set screws.
Can this bearing be used in vertical shaft orientations?
Yes, the Browning VPB-223 AH is suitable for various orientations, provided the load ratings—both radial and axial—are within the manufacturer's specified limits for the 1 7/16" bore size.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
