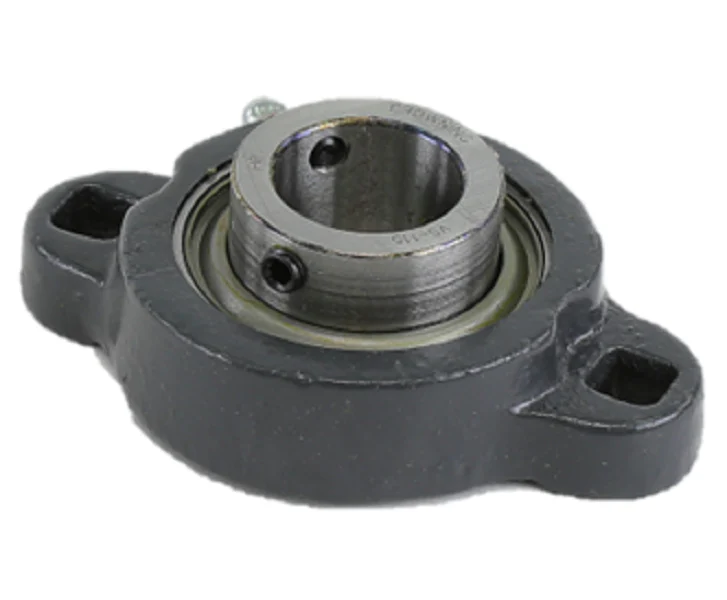

Browning VF2S-115M Ball Bearing
The Browning VF2S-115M is a professional-grade, 15/16" bore diameter mounted ball bearing engineered for intermediate-duty HVACR and industrial applications. Built with a rugged malleable iron flange housing, this two-bolt unit provides superior vibration dampening and structural integrity compared to standard light-duty alternatives. The setscrew locking mechanism features a zone-hardened inner ring, ensuring a secure, slip-resistant grip on the shaft even under fluctuating radial loads. Optimized for high-performance environments, the 52100 steel internal elements are protected by a nitrile rubber contact seal, which effectively retains lubrication while locking out contaminants such as dust and moisture. This non-expansion type bearing is a critical component for air handling units, conveyor systems, and motor-driven assemblies where precise shaft alignment and long-term reliability are non-negotiable for maintenance contractors.
Key Benefits for the Jobsite:- Enhanced Durability: The malleable iron construction offers significantly higher ductile strength than standard cast iron, preventing housing fractures under stress.
- Simplified Installation: Standard two-bolt flange pattern allows for quick mounting in tight spaces typical of commercial air handlers.
- Contamination Protection: Integrated single lip contact seals maintain grease integrity and extend the service life of the precision ball bearing.
- Secure Shaft Retention: The 120-degree setscrew locking design reduces shaft marring while providing maximum holding power.
Is the VF2S-115M suitable for high-speed air handling applications?
Yes, this unit is designed for intermediate-duty load profiles and is commonly used in HVAC blowers and fans. Its precision-ground steel races allow for consistent performance at standard industrial RPMs.
What is the benefit of the malleable iron housing over cast iron?
Malleable iron provides better resistance to impact and thermal expansion, making the Browning VF2S-115M more reliable in environments with high vibration or fluctuating temperatures.
Does this bearing require frequent re-lubrication?
While it comes pre-lubricated with a high-quality grease, it includes a grease fitting for field maintenance to ensure the contact seal remains effective over the long term.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $80.24
-65%$80.24
$28.08Browning VF2S-115M Ball Bearing
The Browning VF2S-115M is a professional-grade, 15/16" bore diameter mounted ball bearing engineered for intermediate-duty HVACR and industrial applications. Built with a rugged malleable iron flange housing, this two-bolt unit provides superior vibration dampening and structural integrity compared to standard light-duty alternatives. The setscrew locking mechanism features a zone-hardened inner ring, ensuring a secure, slip-resistant grip on the shaft even under fluctuating radial loads. Optimized for high-performance environments, the 52100 steel internal elements are protected by a nitrile rubber contact seal, which effectively retains lubrication while locking out contaminants such as dust and moisture. This non-expansion type bearing is a critical component for air handling units, conveyor systems, and motor-driven assemblies where precise shaft alignment and long-term reliability are non-negotiable for maintenance contractors.
Key Benefits for the Jobsite:- Enhanced Durability: The malleable iron construction offers significantly higher ductile strength than standard cast iron, preventing housing fractures under stress.
- Simplified Installation: Standard two-bolt flange pattern allows for quick mounting in tight spaces typical of commercial air handlers.
- Contamination Protection: Integrated single lip contact seals maintain grease integrity and extend the service life of the precision ball bearing.
- Secure Shaft Retention: The 120-degree setscrew locking design reduces shaft marring while providing maximum holding power.
Is the VF2S-115M suitable for high-speed air handling applications?
Yes, this unit is designed for intermediate-duty load profiles and is commonly used in HVAC blowers and fans. Its precision-ground steel races allow for consistent performance at standard industrial RPMs.
What is the benefit of the malleable iron housing over cast iron?
Malleable iron provides better resistance to impact and thermal expansion, making the Browning VF2S-115M more reliable in environments with high vibration or fluctuating temperatures.
Does this bearing require frequent re-lubrication?
While it comes pre-lubricated with a high-quality grease, it includes a grease fitting for field maintenance to ensure the contact seal remains effective over the long term.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Browning VF2S-115M is a professional-grade, 15/16" bore diameter mounted ball bearing engineered for intermediate-duty HVACR and industrial applications. Built with a rugged malleable iron flange housing, this two-bolt unit provides superior vibration dampening and structural integrity compared to standard light-duty alternatives. The setscrew locking mechanism features a zone-hardened inner ring, ensuring a secure, slip-resistant grip on the shaft even under fluctuating radial loads. Optimized for high-performance environments, the 52100 steel internal elements are protected by a nitrile rubber contact seal, which effectively retains lubrication while locking out contaminants such as dust and moisture. This non-expansion type bearing is a critical component for air handling units, conveyor systems, and motor-driven assemblies where precise shaft alignment and long-term reliability are non-negotiable for maintenance contractors.
Key Benefits for the Jobsite:- Enhanced Durability: The malleable iron construction offers significantly higher ductile strength than standard cast iron, preventing housing fractures under stress.
- Simplified Installation: Standard two-bolt flange pattern allows for quick mounting in tight spaces typical of commercial air handlers.
- Contamination Protection: Integrated single lip contact seals maintain grease integrity and extend the service life of the precision ball bearing.
- Secure Shaft Retention: The 120-degree setscrew locking design reduces shaft marring while providing maximum holding power.
Is the VF2S-115M suitable for high-speed air handling applications?
Yes, this unit is designed for intermediate-duty load profiles and is commonly used in HVAC blowers and fans. Its precision-ground steel races allow for consistent performance at standard industrial RPMs.
What is the benefit of the malleable iron housing over cast iron?
Malleable iron provides better resistance to impact and thermal expansion, making the Browning VF2S-115M more reliable in environments with high vibration or fluctuating temperatures.
Does this bearing require frequent re-lubrication?
While it comes pre-lubricated with a high-quality grease, it includes a grease fitting for field maintenance to ensure the contact seal remains effective over the long term.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
