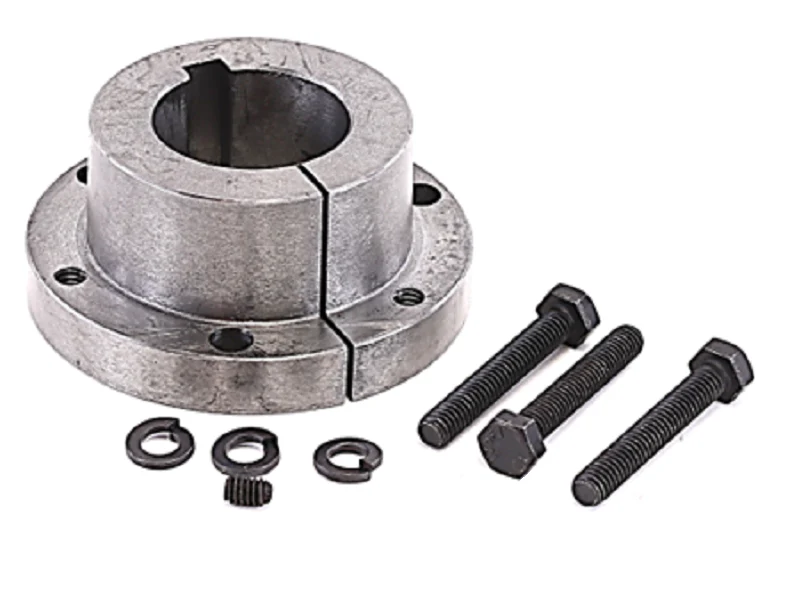

Browning SK 1 11/16 Bushing
The Browning SK 1 11/16 Bushing is a high-performance, quick-detachable (Q-D) mounting solution engineered for heavy-duty power transmission in HVACR and industrial applications. Designed for a 1-11/16" finished bore, this SK series bushing provides a secure, reliable connection between shafts and rotating components like sheaves, sprockets, and pulleys. Constructed from high-strength ductile iron, it handles a torque capacity of 7,000 in-lb, ensuring stability under high-load conditions while preventing shaft slippage.
This shaft mounting component features a 3/4" per foot taper on the barrel, which creates a precise, self-locking mechanical fit. The 3/8" x 3/16" keyway further enhances drive integrity by distributing rotational forces effectively. Its reverse mounting ability allows for flexible installation on either side of the drive hub, catering to compact equipment layouts or specific shaft alignment needs. For the technician, this means easier maintenance and versatile configuration in the field.
- Torque Management: Rated for loads up to 7,000 in-lb for demanding HVACR blower and motor drives.
- Superior Grip: The split-barrel design ensures uniform 360-degree clamping pressure around the 1-11/16" shaft.
- Installation Versatility: Symmetrical design enables conventional or reverse mounting for flush-face or recessed applications.
- Standard Hardware: Uses three 5/16-18 x 2" cap screws with a 3.3125" bolt circle for straightforward integration.
Common Questions
What is the recommended installation torque for the cap screws?
The 5/16" cap screws should be tightened to 15 ft-lbs (180 in-lbs) to achieve proper seating of the taper without over-stressing the ductile iron flange.
Is this bushing compatible with other manufacturer products?
Yes, the Browning SK bushing is fully interchangeable with other industry-standard Q-D series components from brands like Dodge and Martin, provided they are in the SK series.
What are the benefits of the 3/4" per foot taper?
It provides a high-degree of mechanical locking, ensuring the component remains concentric to the shaft, which reduces vibration and extends the life of bearings and belts.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
