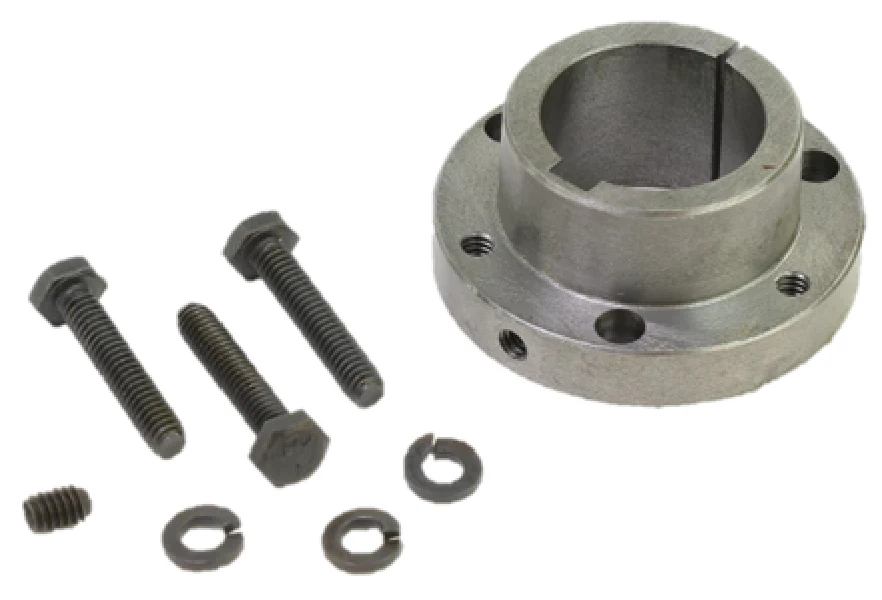

Browning SH 1 3/8 5/16 Bushing
For high-torque HVACR drive applications, the Browning SH 1 3/8 3/8 is a professional-grade QD Bushing engineered to provide a secure, concentric fit between the shaft and the drive component. This SH Series Bushing features a 1 3/8 inch bore with a standard 3/8" x 3/16" keyseat, ensuring positive power transmission and eliminating slippage during peak loads. Utilizing a 3/4" per foot taper design, this split taper bushing provides superior mechanical locking while allowing for easy installation and removal from Browning sheaves, pulleys, and sprockets. The ductile iron construction offers the durability required for heavy-duty industrial blowers and mechanical drive systems. Designed for versatile mounting, it supports both conventional and reverse orientations to accommodate various shaft configurations and clearances found in standard air handling units and refrigeration compressors.
Key Benefits- Precision Clamping: The double-split barrel design ensures true concentricity, reducing vibration and extending the service life of your drive motors and bearings.
- High Torque Capacity: Machined with a precise 3/8" keyway to manage high starting torques and reversing loads without shaft deformation.
- Standardized Compatibility: Fully interchangeable with industry-standard QD Bushings, making it a reliable drop-in replacement for maintenance and repair operations.
- Self-Locking Taper: The specific 3/4-inch per foot taper provides a robust mechanical fit that resists loosening under the thermal stresses of HVACR environments.
What is the bolt circle diameter for the SH series?
The Browning SH bushing features a standard 2.250" bolt circle, requiring three 1/4-20 x 1 3/8" cap screws for proper installation and secure fastening to the hub.
Can this bushing be used on a shaft without a keyway?
While the bushing provides a friction fit, for HVACR applications requiring reliable torque transfer, it is highly recommended to use a keyed shaft that matches the 3/8" x 3/16" keyway specifications of this 1 3/8" bore unit.
Is the SH series interchangeable with other brands?
Yes, the SH QD Bushing is designed to the industry-standard Quick Detachable specification, allowing it to interface with compatible sheaves or sprockets from various manufacturers.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $44.85
-65%$44.85
$15.70Browning SH 1 3/8 5/16 Bushing
