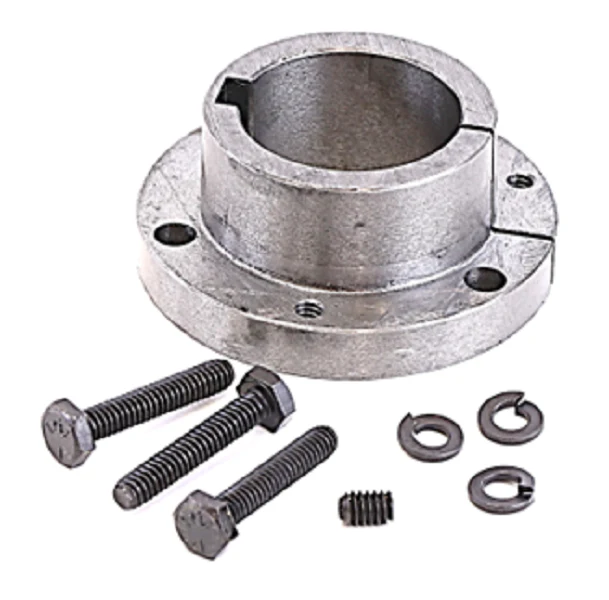

Browning SDS 1 5/8 Bushing
The Browning SDS 1 5/8 Bushing is a high-performance QD Bushing engineered for precision power transmission in commercial HVACR ventilation and drive systems. Fabricated from ductile iron, this split taper bushing provides an industrial-grade mechanical lock between the shaft and the drive component, such as a sheave or sprocket. Featuring a 1 5/8" Bore and an integrated 3/8" x 3/16" Keyseat, the SDS series utilizes a 3/4"/ft. taper to ensure a concentric, high-torque fit that eliminates shaft slippage under heavy loads. With a torque capacity of 5,000 in-lbs, this component is designed for high-demand centrifugal fan and axial blower applications. The reverse mounting ability allows for flexible installation on either side of the hub, providing a flush-mount solution for tight-clearance equipment. This unit uses three 1/4-20 x 1 3/8 cap screws on a 2.6875 bolt circle, ensuring balanced clamping force and a secure shaft mounting interface.
Key Benefits- Enhanced Torque Transmission: The tight mechanical grip of the 3/4" taper per foot ensures positive locking and 5,000 in-lb torque ratings for industrial duty cycles.
- Durable Construction: Manufactured from ASTM 65-45-14 ductile iron for superior tensile strength and resistance to fatigue compared to standard gray iron.
- Installation Versatility: Dual mounting capability permits conventional or reverse orientation, simplifying alignment in compact HVAC motor cabinets.
- Precision Alignment: The split-barrel design ensures concentric shaft seating, reducing vibration and extending the service life of belts and bearings.
Is the Browning SDS 1 5/8 interchangeable with other QD series bushings?
Yes, the Browning SDS 1 5/8 is part of the industry-standard Quick-Detachable (QD) system. It is fully interchangeable with SDS bushings from other major manufacturers like Martin or Dodge, provided the bore and keyway dimensions match.
What is the correct wrench torque for the cap screws?
For secure bushing installation, the three 1/4-20 cap screws should be tightened to a specific 9 ft-lbs (108 in-lbs). Over-tightening can cause the flange to crack or the barrel to over-expand.
Does this bushing include the required mounting hardware?
This 1 5/8" bore bushing typically includes the necessary grade-5 cap screws required for conventional or reverse mounting to the sheave or sprocket hub.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $45.25
-65%$45.25
$15.84Browning SDS 1 5/8 Bushing
The Browning SDS 1 5/8 Bushing is a high-performance QD Bushing engineered for precision power transmission in commercial HVACR ventilation and drive systems. Fabricated from ductile iron, this split taper bushing provides an industrial-grade mechanical lock between the shaft and the drive component, such as a sheave or sprocket. Featuring a 1 5/8" Bore and an integrated 3/8" x 3/16" Keyseat, the SDS series utilizes a 3/4"/ft. taper to ensure a concentric, high-torque fit that eliminates shaft slippage under heavy loads. With a torque capacity of 5,000 in-lbs, this component is designed for high-demand centrifugal fan and axial blower applications. The reverse mounting ability allows for flexible installation on either side of the hub, providing a flush-mount solution for tight-clearance equipment. This unit uses three 1/4-20 x 1 3/8 cap screws on a 2.6875 bolt circle, ensuring balanced clamping force and a secure shaft mounting interface.
Key Benefits- Enhanced Torque Transmission: The tight mechanical grip of the 3/4" taper per foot ensures positive locking and 5,000 in-lb torque ratings for industrial duty cycles.
- Durable Construction: Manufactured from ASTM 65-45-14 ductile iron for superior tensile strength and resistance to fatigue compared to standard gray iron.
- Installation Versatility: Dual mounting capability permits conventional or reverse orientation, simplifying alignment in compact HVAC motor cabinets.
- Precision Alignment: The split-barrel design ensures concentric shaft seating, reducing vibration and extending the service life of belts and bearings.
Is the Browning SDS 1 5/8 interchangeable with other QD series bushings?
Yes, the Browning SDS 1 5/8 is part of the industry-standard Quick-Detachable (QD) system. It is fully interchangeable with SDS bushings from other major manufacturers like Martin or Dodge, provided the bore and keyway dimensions match.
What is the correct wrench torque for the cap screws?
For secure bushing installation, the three 1/4-20 cap screws should be tightened to a specific 9 ft-lbs (108 in-lbs). Over-tightening can cause the flange to crack or the barrel to over-expand.
Does this bushing include the required mounting hardware?
This 1 5/8" bore bushing typically includes the necessary grade-5 cap screws required for conventional or reverse mounting to the sheave or sprocket hub.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
