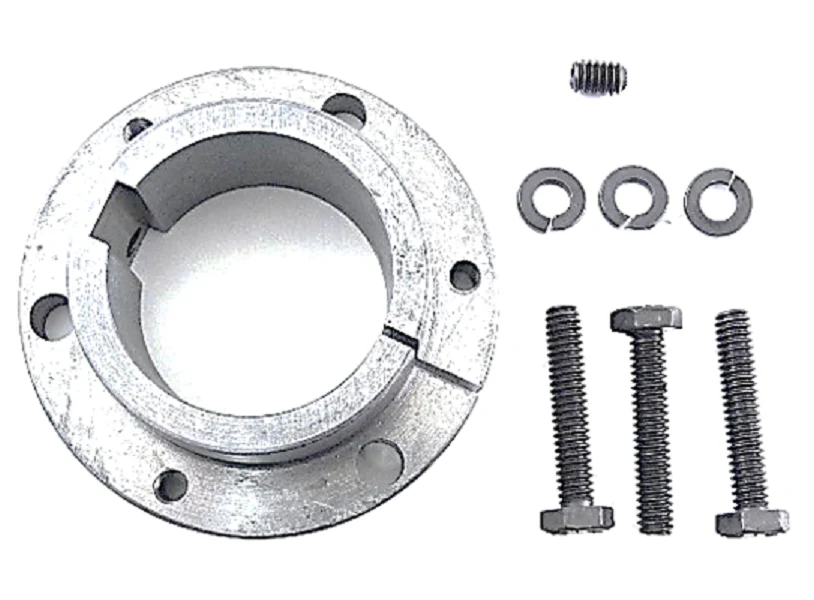

Browning SDS 1 11/16 Bushing
As a seasoned technician, you know that the Browning SDS 1 11/16 Bushing is a staple for securing sheaves, sprockets, and pulleys in high-demand HVACR and industrial drive systems. This Q-D (Quick-Disconnect) bushing is engineered with a 1 11/16" finished bore and a standard 3/8" x 3/16" keyseat to ensure a positive, non-slip drive. Built from high-strength ductile iron, the SDS series utilizes a 3/4" per foot self-locking taper that provides superior mechanical locking between the shaft and the component hub. Its split taper design allows for a true concentric clamp, effectively eliminating the vibration issues often found in inferior mounting hardware. Whether you are performing a conventional mounting or require reverse mounting for a flush-face installation, this split taper bushing provides the versatility needed for tight mechanical rooms. With a torque capacity of 5,000 in-lbs and a robust three-bolt flange pattern, it is the reliable choice for maintaining critical fan and blower alignments in the field.
Key Benefits for Contractors:- Ductile Iron Construction: High-grade 65-45-50 ductile iron provides maximum durability and resistance to cracking under high torque loads.
- Concentric Clamping: The double-split barrel ensures the bushing grips the shaft uniformly, reducing wobble and extending the life of your bearings.
- Installation Versatility: Fully compatible with Browning sheaves and interchangeable with other industry-standard QD bushings, supporting both flange-in and flange-out configurations.
- Secure Drive: Integrated key-to-key drive between the shaft and the hub transfers power efficiently without relying solely on the cap screws.
What are the torque requirements for the SDS bushing cap screws?
For this SDS series, use the three included 1/4-20 x 1 3/8" cap screws. Professionals should tighten these sequentially to a recommended wrench torque of 9 ft-lbs (108 in-lbs) to ensure a secure, even set.
Can this bushing be used on worn shafts?
While the split taper design offers a superior grip compared to set-screw hubs, always verify your shaft diameter. This bushing fits a 1.6875" shaft; using it on undersized or deeply scored shafts can compromise the 5,000 in-lb torque rating.
Is the key included with the bushing?
Most Browning SDS bushings require a standard 3/8" square key for the 1 11/16" bore. Always check the shaft keyway depth to ensure the 3/16" keyseat depth provides proper clearance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $73.67
-65%$73.67
$25.78Browning SDS 1 11/16 Bushing
As a seasoned technician, you know that the Browning SDS 1 11/16 Bushing is a staple for securing sheaves, sprockets, and pulleys in high-demand HVACR and industrial drive systems. This Q-D (Quick-Disconnect) bushing is engineered with a 1 11/16" finished bore and a standard 3/8" x 3/16" keyseat to ensure a positive, non-slip drive. Built from high-strength ductile iron, the SDS series utilizes a 3/4" per foot self-locking taper that provides superior mechanical locking between the shaft and the component hub. Its split taper design allows for a true concentric clamp, effectively eliminating the vibration issues often found in inferior mounting hardware. Whether you are performing a conventional mounting or require reverse mounting for a flush-face installation, this split taper bushing provides the versatility needed for tight mechanical rooms. With a torque capacity of 5,000 in-lbs and a robust three-bolt flange pattern, it is the reliable choice for maintaining critical fan and blower alignments in the field.
Key Benefits for Contractors:- Ductile Iron Construction: High-grade 65-45-50 ductile iron provides maximum durability and resistance to cracking under high torque loads.
- Concentric Clamping: The double-split barrel ensures the bushing grips the shaft uniformly, reducing wobble and extending the life of your bearings.
- Installation Versatility: Fully compatible with Browning sheaves and interchangeable with other industry-standard QD bushings, supporting both flange-in and flange-out configurations.
- Secure Drive: Integrated key-to-key drive between the shaft and the hub transfers power efficiently without relying solely on the cap screws.
What are the torque requirements for the SDS bushing cap screws?
For this SDS series, use the three included 1/4-20 x 1 3/8" cap screws. Professionals should tighten these sequentially to a recommended wrench torque of 9 ft-lbs (108 in-lbs) to ensure a secure, even set.
Can this bushing be used on worn shafts?
While the split taper design offers a superior grip compared to set-screw hubs, always verify your shaft diameter. This bushing fits a 1.6875" shaft; using it on undersized or deeply scored shafts can compromise the 5,000 in-lb torque rating.
Is the key included with the bushing?
Most Browning SDS bushings require a standard 3/8" square key for the 1 11/16" bore. Always check the shaft keyway depth to ensure the 3/16" keyseat depth provides proper clearance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
