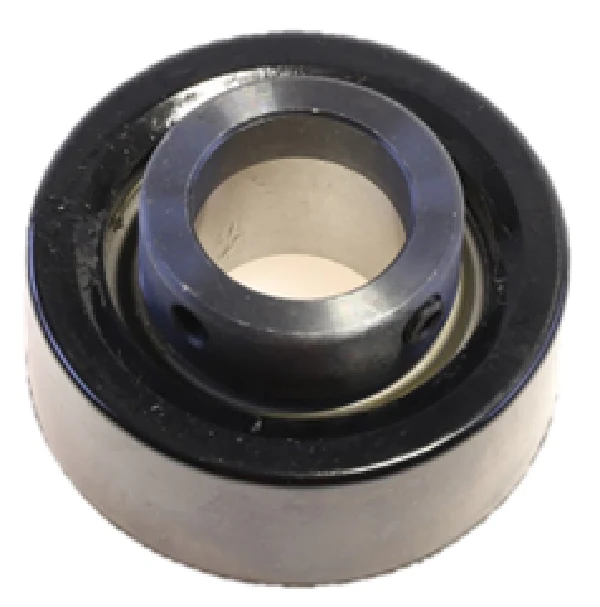

Browning RUBRE-116 Ball Bearing
The Browning RUBRE-116 is a high-performance interchange mounted ball bearing specifically engineered for light-duty HVACR applications, such as commercial evaporative coolers and air handling systems. This tight-tolerance 1 inch bore bearing features a 52100 steel insert and chemically hardened raceways to ensure structural integrity under continuous operation. The cylindrical cartridge with rubber grommet design is critical for technicians looking to dampen vibration and reduce acoustic signatures in sensitive installations. Utilizing an eccentric locking collar, the RUBRE-116 provides a secure, non-marring grip on the shaft that tightens in the direction of rotation, preventing slippage during high-torque startups.
For contractors performing preventative maintenance or emergency repairs, the Browning RUBRE-116 ball bearing serves as a reliable replacement for standard pillow block or flange-mounted inserts. The integration of a single-lip contact seal protects the internal precision-engineered balls from contaminants, while the high-grade rubber grommet housing compensates for minor mounting misalignments. With a dynamic load capacity of 2,801 lbs and a maximum rated speed of 3,500 RPM, this unit delivers the robust performance required for modern power transmission and fan assemblies.
Key Benefits for HVACR Technicians:- Vibration Isolation: The specialized rubber grommet housing significantly absorbs mechanical noise and harmonic transfer.
- Directional Security: The eccentric locking mechanism ensures the bearing remains fixed during standard rotation.
- Contaminant Resistance: Equipped with a single-lip contact seal to maintain internal lubrication and keep out dust and debris.
- Durable Construction: Built with 52100 bearing steel and hardened raceways for superior wear resistance in industrial environments.
Is the Browning RUBRE-116 compatible with standard 1" shafts?
Yes, this unit is precision-ground for a 1 inch bore and is designed as a direct interchange mounted ball bearing for various light-duty air handling configurations.
How does the rubber grommet affect installation?
The cylindrical rubber cartridge provides a degree of flexibility, allowing the bearing to seat properly even if the housing has slight variances, while effectively isolating the motor and fan noise from the ductwork.
What is the maximum RPM for this bearing?
The RUBRE-116 is rated for speeds up to 3,500 RPM, making it ideal for most standard-diameter centrifugal fans and belt-driven blower assemblies found in commercial HVAC units.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
