Browning Q2 1 5/8 Bushing

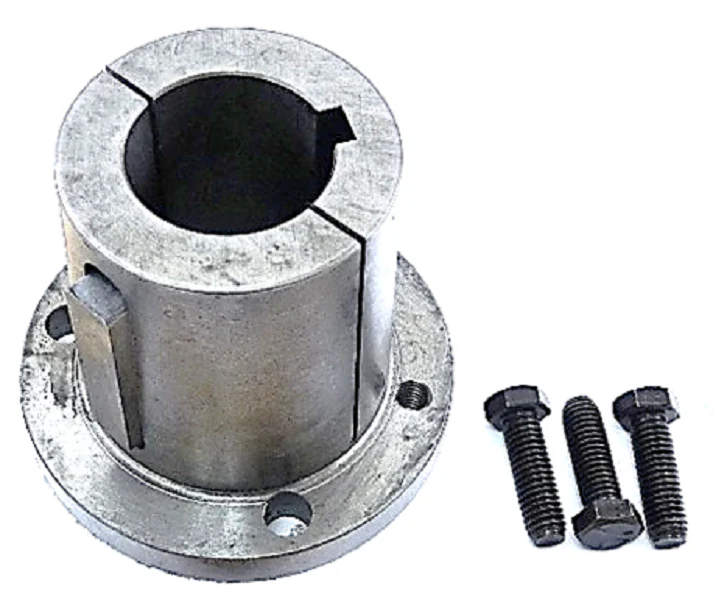

As a seasoned technician, you know that keeping high-torque drive systems aligned requires more than just a standard fit. The Browning Q2 1 5/8 Bushing is engineered with a split taper design featuring a 4.125" solid flange and a double-split barrel, ensuring superior concentricity and a positive clamp on the shaft. This Q2 series split taper bushing utilizes a 3/4" per foot taper to provide a high-degree mechanical lock, preventing the component "walking" common in lesser mounting systems. With a 1 5/8" finished bore and a standard 3/8" x 3/16" keyseat, this unit is designed to handle a wrench torque of 348 lb-in, making it ideal for heavy-duty HVACR applications like industrial blowers, large-scale fans, and pump assemblies. The key-to-key drive system incorporates both an internal and external key, transferring the torque load away from the cap screws to the structural body of the bushing for maximum reliability in high-vibration environments.
Key Benefits for Contractors- Precision Concentricity: The double-split barrel provides a uniform grip around the entire circumference of the 1 5/8" shaft, reducing runout and extending the life of your bearings and sheaves.
- Superior Torque Transmission: Features a 3/8" x 3/16" keyway and a solid flange construction that maintains bore integrity even under reversing loads or high-startup torque.
- Interchangeable Mounting: The Q2 series bushing is compatible with a wide array of Browning sheaves, sprockets, and pulleys, featuring a 3 3/8" bolt circle for standardized fitment.
- Ease of Removal: Designed with two tapped holes in the flange to act as jack screws, allowing for quick disassembly even after years of service in corrosive environments.
What is the proper torque spec for the 3/8" x 1 1/4" cap screws?
To ensure a secure mechanical lock, the three 3/8" cap screws should be tightened alternately and progressively to a final wrench torque of 348 in-lbs. Do not lubricate the bushing barrel or the hub bore, as this can lead to over-tensioning and flange breakage.
Will this Q2 bushing fit other manufacturers' sheaves?
The Browning split taper system is a proprietary design. While it is interchangeable with other split taper series components of the same size, it is not compatible with QD (Quick Disconnect) or Taper-Lock style hubs. Always verify the 3/4" per foot taper matches your component bore.
What applications is the 1 5/8" bore size most common for?
This specific bore is a standard for 5HP to 10HP motor shafts and drive-side shafts on large HVAC centrifugal fans. The steel or ductile iron material provides the necessary yield strength for these high-stress rotational assemblies.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Browning Q2 1 5/8 Bushing
As a seasoned technician, you know that keeping high-torque drive systems aligned requires more than just a standard fit. The Browning Q2 1 5/8 Bushing is engineered with a split taper design featuring a 4.125" solid flange and a double-split barrel, ensuring superior concentricity and a positive clamp on the shaft. This Q2 series split taper bushing utilizes a 3/4" per foot taper to provide a high-degree mechanical lock, preventing the component "walking" common in lesser mounting systems. With a 1 5/8" finished bore and a standard 3/8" x 3/16" keyseat, this unit is designed to handle a wrench torque of 348 lb-in, making it ideal for heavy-duty HVACR applications like industrial blowers, large-scale fans, and pump assemblies. The key-to-key drive system incorporates both an internal and external key, transferring the torque load away from the cap screws to the structural body of the bushing for maximum reliability in high-vibration environments.
Key Benefits for Contractors- Precision Concentricity: The double-split barrel provides a uniform grip around the entire circumference of the 1 5/8" shaft, reducing runout and extending the life of your bearings and sheaves.
- Superior Torque Transmission: Features a 3/8" x 3/16" keyway and a solid flange construction that maintains bore integrity even under reversing loads or high-startup torque.
- Interchangeable Mounting: The Q2 series bushing is compatible with a wide array of Browning sheaves, sprockets, and pulleys, featuring a 3 3/8" bolt circle for standardized fitment.
- Ease of Removal: Designed with two tapped holes in the flange to act as jack screws, allowing for quick disassembly even after years of service in corrosive environments.
What is the proper torque spec for the 3/8" x 1 1/4" cap screws?
To ensure a secure mechanical lock, the three 3/8" cap screws should be tightened alternately and progressively to a final wrench torque of 348 in-lbs. Do not lubricate the bushing barrel or the hub bore, as this can lead to over-tensioning and flange breakage.
Will this Q2 bushing fit other manufacturers' sheaves?
The Browning split taper system is a proprietary design. While it is interchangeable with other split taper series components of the same size, it is not compatible with QD (Quick Disconnect) or Taper-Lock style hubs. Always verify the 3/4" per foot taper matches your component bore.
What applications is the 1 5/8" bore size most common for?
This specific bore is a standard for 5HP to 10HP motor shafts and drive-side shafts on large HVAC centrifugal fans. The steel or ductile iron material provides the necessary yield strength for these high-stress rotational assemblies.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
