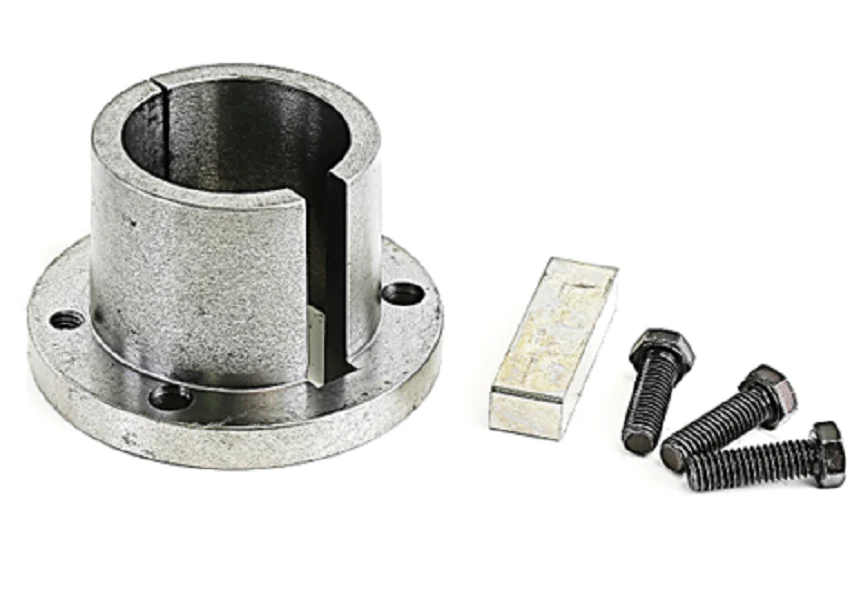

Browning Q1 2 3/16 Bushing
The Browning Q1 2 3/16 Split Taper Bushing is a critical component for high-torque mechanical power transmission, designed specifically for heavy-duty HVACR and industrial blower applications. Manufactured from high-grade malleable iron, this bushing features a 2 3/16-inch bore and is engineered for use with sheaves, sprockets, and pulleys requiring a Q1 series hub. The split taper design utilizes a double-split barrel and a solid flange to provide a reliable 360-degree concentric grip on the shaft, effectively eliminating the vibration and fretting corrosion common with standard clearance fits. This specific unit includes a 1/2" x 1/4" keyseat and a 5.5-inch bolt circle, ensuring secure power transfer in high-stress environments. Contractors value the tapered bushing system for its ease of installation and removal, allowing for rapid field service even on shafts that are slightly undersized.
- Engineered Precision: The Q1 taper bushing ensures a true-running fit, reducing bearing wear on blower motors and fan shafts.
- Durable Construction: Made from malleable iron to provide superior tensile strength compared to standard gray iron alternatives.
- Universal Compatibility: Interchanges seamlessly with other split taper bushings in the same series for versatile fleet management.
- Mechanical Security: The 1/2" x 1/4" keyseat provides a secondary mechanical lock to prevent slipping under high-torque startup loads.
Common Technical Questions
What is the torque capacity of a Q1 Split Taper Bushing?
The Browning Q1 series is designed to handle high-torque applications, typically rated for several thousand inch-pounds depending on the shaft diameter and key seat depth.
Can I use this bushing on a shaft without a keyway?
While the split taper design provides significant clamping force, for HVACR applications requiring reliable power transmission, using a 2 3/16" shaft with a matching keyway is necessary to meet the Browning Q1 specifications.
How do I prevent the bushing from seizing on the shaft?
The tapered design naturally resists seizing better than standard bushings; however, ensuring the shaft is clean and using a light film of oil (unless otherwise specified for high-speed friction fits) facilitates easier removal during maintenance cycles.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
