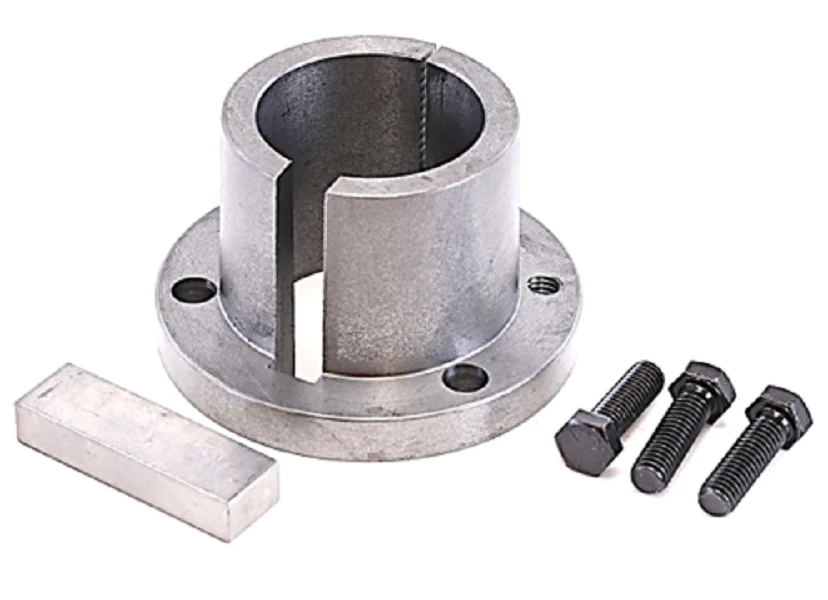

Browning Q1 2 1/8 Bushing
The Browning Q1 2 1/8 Bushing is a high-performance split taper bushing engineered for precise shaft mounting in demanding mechanical power transmission applications. Featuring a 2 1/8" bore and a 1/2" x 1/4" keyseat, this component utilizes a double split barrel design that facilitates a uniform clamp fit, effectively eliminating the common issue of shaft fretting and ensuring true concentricity. The solid flange construction provides additional structural integrity, while the 3/4" per foot taper offers a self-locking mechanism that secures the bushing to the hub with maximum mechanical pressure. With a 348 in-lb wrench torque rating and a key-to-key drive architecture, this sintered steel or ductile iron bushing is built to handle significant torque loads without relying solely on the three 3/8 x 1 1/4 cap screws. Designed for versatility, the Q1 series bushing is a standard choice for contractors looking for reliable HVAC shaft mounting and industrial pulley alignment.
Key Benefits:- True Concentricity: The double split barrel ensures a positive clamp fit around the entire circumference of the shaft, reducing vibration.
- High Torque Capacity: Dual-keyed design (shaft and hub) allows for higher power transmission efficiency in heavy-duty HVACR systems.
- Interchangeable Design: Built to industry-standard dimensions for Q1 series split taper systems, ensuring seamless replacement in existing sheaves and sprockets.
- Self-Locking Taper: The 3/4" per foot taper barrel provides a superior mechanical bond between the component and the shaft.
- What are the mounting screw specifications? This bushing requires three 3/8" x 1-1/4" cap screws, which are typically included to ensure proper torque application.
- Does this bushing support reverse mounting? The Browning Q1 is generally designed for conventional mounting, utilizing the flange to draw the bushing into the hub.
- What material is used for the 2 1/8" bore size? For this specific bore range, the unit is typically manufactured from high-strength steel or ductile iron to withstand high stress levels.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $72.43
-65%$72.43
$25.35Browning Q1 2 1/8 Bushing
The Browning Q1 2 1/8 Bushing is a high-performance split taper bushing engineered for precise shaft mounting in demanding mechanical power transmission applications. Featuring a 2 1/8" bore and a 1/2" x 1/4" keyseat, this component utilizes a double split barrel design that facilitates a uniform clamp fit, effectively eliminating the common issue of shaft fretting and ensuring true concentricity. The solid flange construction provides additional structural integrity, while the 3/4" per foot taper offers a self-locking mechanism that secures the bushing to the hub with maximum mechanical pressure. With a 348 in-lb wrench torque rating and a key-to-key drive architecture, this sintered steel or ductile iron bushing is built to handle significant torque loads without relying solely on the three 3/8 x 1 1/4 cap screws. Designed for versatility, the Q1 series bushing is a standard choice for contractors looking for reliable HVAC shaft mounting and industrial pulley alignment.
Key Benefits:- True Concentricity: The double split barrel ensures a positive clamp fit around the entire circumference of the shaft, reducing vibration.
- High Torque Capacity: Dual-keyed design (shaft and hub) allows for higher power transmission efficiency in heavy-duty HVACR systems.
- Interchangeable Design: Built to industry-standard dimensions for Q1 series split taper systems, ensuring seamless replacement in existing sheaves and sprockets.
- Self-Locking Taper: The 3/4" per foot taper barrel provides a superior mechanical bond between the component and the shaft.
- What are the mounting screw specifications? This bushing requires three 3/8" x 1-1/4" cap screws, which are typically included to ensure proper torque application.
- Does this bushing support reverse mounting? The Browning Q1 is generally designed for conventional mounting, utilizing the flange to draw the bushing into the hub.
- What material is used for the 2 1/8" bore size? For this specific bore range, the unit is typically manufactured from high-strength steel or ductile iron to withstand high stress levels.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
