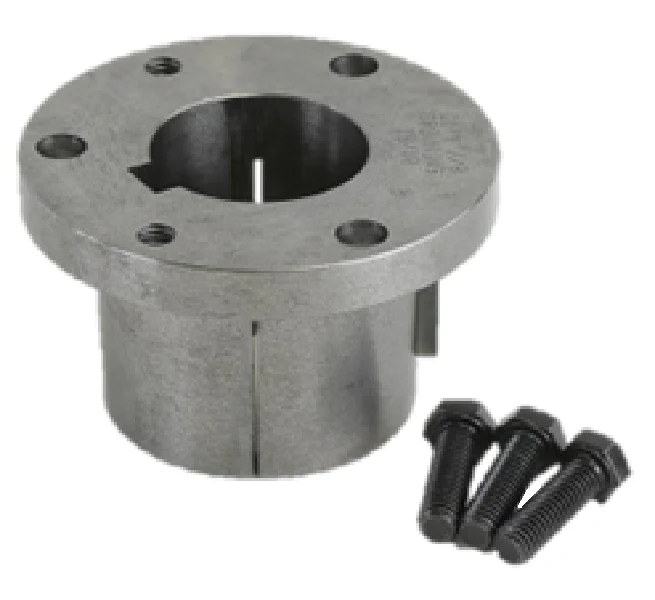

Browning Q1 1 7/8 Bushing
The Browning Q1 1 7/8 Bushing is a heavy-duty split taper bushing engineered for a precise 1-7/8 inch finished bore application. Designed for rigorous HVACR and industrial mechanical drives, this Q1 Series split taper bushing features a 1/2" x 1/4" keyseat and a unique 3/4" per foot taper. The double-split barrel design provides a superior 360-degree clamp fit, effectively acting as a solid-state connection between the shaft and the mechanical power transmission component, such as a sheave, pulley, or sprocket. Constructed from high-grade sintered steel or ductile iron, the Browning 1079011 ensures high torque carrying capacity by utilizing a key-to-key drive system on both the shaft and the hub. This configuration eliminates stress on the 3/8" x 1-1/4" cap screws, focusing the load on the mechanical keys for maximum drivetrain reliability. With a 4.125-inch flange diameter and a solid flange construction, it maintains strict concentricity to prevent shaft wobbling and vibration in high-RPM fan or compressor assemblies.
- Enhanced Concentricity: The solid flange and double-split barrel design ensure the Browning Q1 bushing maintains a true center, reducing vibration in belt-driven systems.
- Maximum Torque Transfer: Keyed to both the shaft and the product, the external key drive handles high loads without relying on fastener shear strength.
- Self-Locking Taper: The 3/4" per foot taper provides a secure mechanical lock that simplifies installation and provides a standardized fit across Browning split taper components.
- Industrial Durability: Manufactured from sintered steel or ductile iron to withstand common HVACR operating environments and continuous-duty cycles.
Common Questions
What is the correct torque for the cap screws on a Q1 bushing?
For a standard Browning Q1 series installation, the three 3/8" cap screws should be tightened sequentially to a recommended wrench torque of 348 in-lbs to ensure even clamping force without damaging the flange.
Can this bushing be used with sheaves from other manufacturers?
The Browning Q1 1 7/8 is designed specifically for Q1-style hubs. While many manufacturers follow the split taper standard, always verify that the bolt circle (3-3/8") and taper angle match the mating component for a safe drive system connection.
How does the split taper design help with shaft removal?
Unlike straight-bore hubs that can seize, the split barrel and threaded removal holes in the flange allow technicians to use the cap screws as jackscrews, easily breaking the taper for fast maintenance or replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
