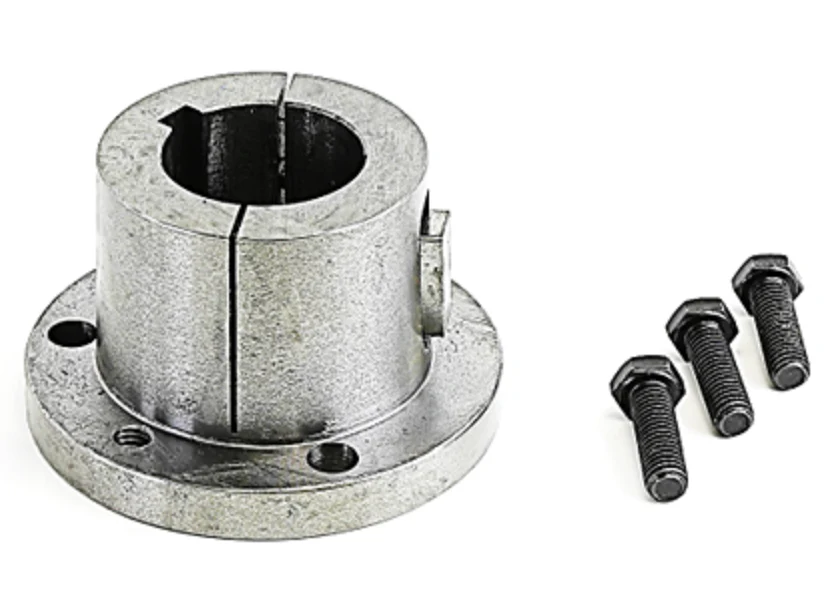

Browning Q1 1 11/16 Bushing
The Browning Q1 1 11/16 Bushing is a critical industrial component designed for high-torque mechanical power transmission. Constructed from heavy-duty sintered steel, this Q1 Series split taper bushing features a precision 1 11/16" bore and a standard 3/8" x 3/16" keyseat. The design utilizes a 3/4" per foot taper to provide the highest degree of mechanical locking between the shaft and the driven component, such as a sheave or sprocket. The double-split barrel ensures a secure, concentric grip that minimizes vibration and protects the shaft from marring, making it a reliable choice for long-term HVACR and industrial drive applications. With three 3/8" x 1 1/4" cap screws providing a wrench torque of 348 in-lbs, this 1.688 inch bore bushing maintains superior alignment under significant loads.
Key Benefits
- High Torque Transmission: The key-to-key drive system utilizes keys on both the shaft and the hub for maximum power handling.
- Superior Concentricity: Features a solid flange and double-split barrel to ensure true running and reduced component wear.
- Self-Locking Design: The 3/4" per foot taper provides a robust mechanical grip that resists slipping during high-speed operation.
- Durable Material: High-grade steel construction provides the structural integrity needed for demanding commercial fan and pump drives.
Common Questions
What is the bolt circle diameter for a Q1 series bushing?
The Browning Q1 1 11/16 features a 3 3/8" bolt circle diameter and uses three 3/8" cap screws for installation.
Will this bushing fit a standard 1-11/16" shaft?
Yes, it is specifically designed for a 1.688" (1-11/16") shaft diameter with a corresponding 3/8" x 3/16" keyway requirement.
Can these be used with non-Browning sheaves?
While optimized for Browning components, split taper bushings are standardized and typically compatible with any companion part designed for a Q1-series bore.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
