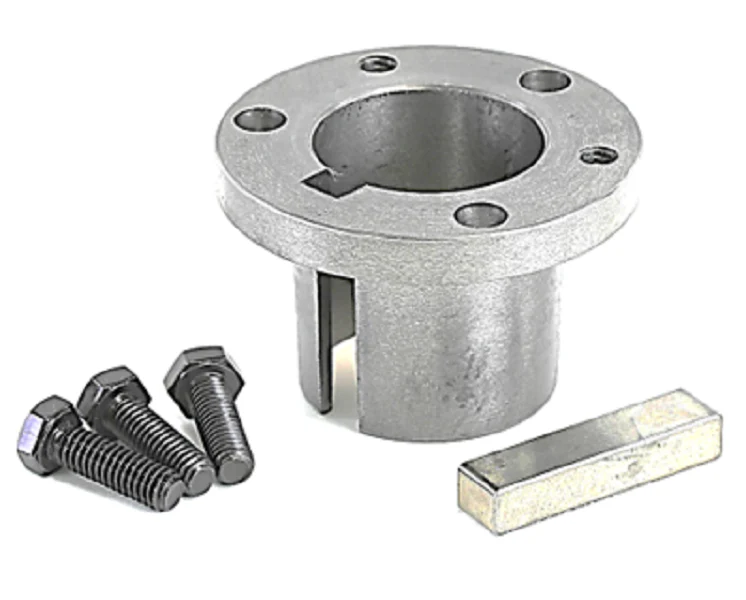

Browning P1 1 5/8 Bushing
As a seasoned tech, you know that keeping your drive components aligned is critical for system longevity. The Browning P1 1 5/8 Bushing is the industry standard for securing sheaves, pulleys, and sprockets to 1-5/8 inch shafts without sacrificing concentricity. This P1 series split taper bushing features a double split barrel and a solid flange, providing a uniform grip that minimizes vibration and prevents shaft galling during high-torque HVAC mechanical power transmission applications. With a 3/8 x 3/16 keyseat and a 3/4" per foot taper, this component ensures a key-to-key drive, effectively locking the assembly into a single units for maximum mechanical efficiency.
Built from high-grade sintered steel or ductile iron, the Browning 1069517 is designed for easy installation and removal via three 5/16 x 1 cap screws. Whether you are replacing a worn tapered bushing in a commercial blower or setting up a new V-belt drive sheave, this split taper bushing delivers the precision fit required for balanced operation. The 2-7/16" bolt circle and 1.9375" length through bore make it a versatile cross-reference for numerous industrial motor shafts and fan drives.
Key Benefits:- Double Split Barrel: Provides a more uniform clamp around the shaft compared to single-split alternatives, reducing runout.
- Solid Flange Construction: Maintains structural integrity under heavy loads, ensuring the bushing remains seated in the drive hub.
- Standardized 3/4" Taper: Creates a self-locking mechanical bond that prevents slipping during startup and variable speed cycles.
- Key-to-Key Drive: Uses keys on both the shaft and the bushing to deliver the highest possible torque capacity.
- What is the torque specification for the cap screws? These should be tightened to approximately 192 in-lbs for secure mounting.
- Can this be used on non-keyed shafts? While the taper provides a strong friction fit, using the 3/8" keyway is always recommended for safety and full torque rating.
- Is this compatible with other brands? Yes, the P1 series is standard and cross-references with many other major split taper manufacturers.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
