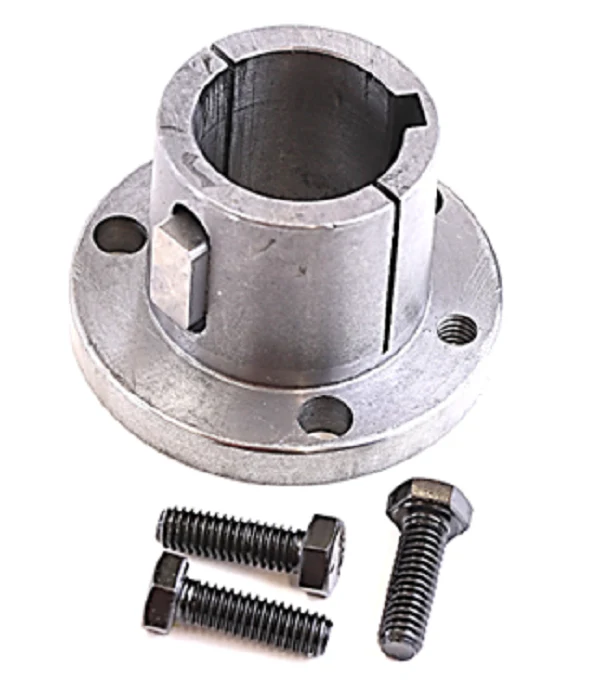

Browning P1 1 3/8 5/16M Bushing
The Browning P1 1 3/8 5/16M Bushing is a heavy-duty split taper bushing engineered for precise shaft-to-hub synchronization in industrial HVACR drive systems. This P1 series component is manufactured from durable malleable iron and features a 1 3/8" finished bore with a precise 5/16" x 5/32" keyseat for positive torque transmission. Designed with a double-split barrel and a solid flange, this mechanical power transmission hardware ensures superior concentricity and a secure 3/4" per foot self-locking taper fit. The specialized key-to-key drive system utilizes both shaft and hub keys, effectively removing shear stress from the three 5/16" x 1" cap screws. This construction is ideal for mounting sheaves and sprockets in high-vibration applications, including fan drives, conveyors, and blower assemblies. With a 3" outside diameter and a 1-15/16" overall length, the Browning P1 provides the mechanical locking force required for reliable, long-term operation on 2-7/16" bolt circle configurations.
Key Benefits- Double-Split Barrel: Enhances shaft gripping power and ensures true concentricity to minimize vibration in high-speed HVAC rotations.
- Malleable Iron Construction: Provides high tensile strength and impact resistance for demanding industrial environments.
- Positive Key-to-Key Drive: Features an external key that provides positive drive with no torque load on the cap screws.
- Self-Locking Taper: The 3/4" per foot taper design provides the highest degree of mechanical locking between the bushing and the component hub.
- Interchangeability: Standard P1 dimensions allow for seamless integration with diverse drive components and sheaves.
What is the correct torque for the cap screws?
For the Browning P1 bushing, tighten the three 5/16" cap screws to a recommended wrench torque of 192 in-lbs for secure mounting.
Does this bushing require a specific key size?
Yes, this model features a 5/16" x 5/32" keyseat designed for 1 3/8" shafts. Ensure your shaft keyway matches these exact dimensions for proper fitment.
What is the difference between a split taper and a QD bushing?
Split taper bushings like the P1 feature a flanged design with a keyed barrel and a double-split for high clamping force, whereas QD bushings typically use a single split and different taper degrees.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
